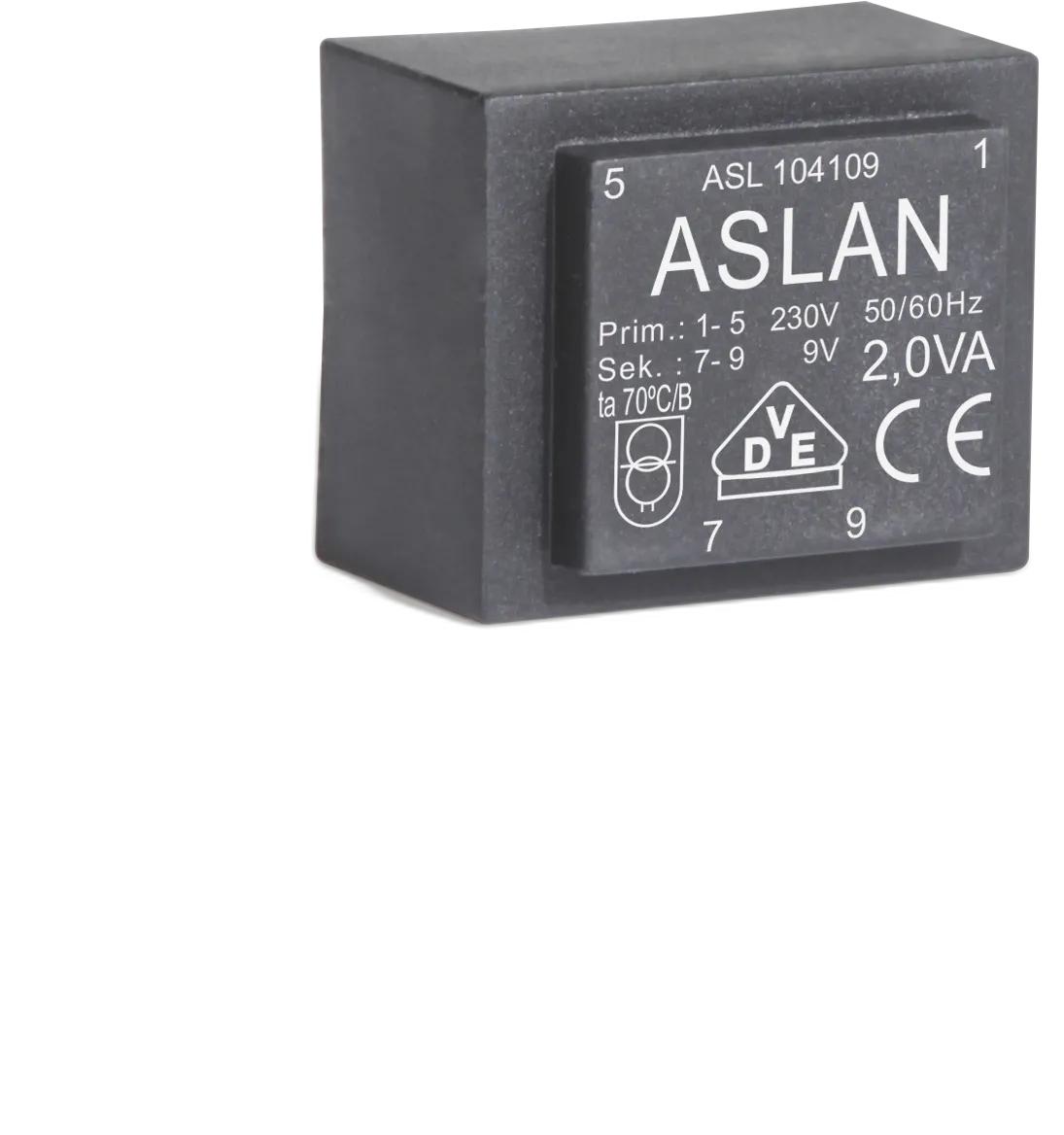

EI30 series
2VA-EI30-15.5
2 VA · EI30 core · Standard (0) · 230 V primary · 14 part numbers
Series specifications
- Core
- EI30
- Rated power
- 2 VA
- Primary
- 230 V (single winding)
- Secondary
- 6–24 V per winding · single or dual
- Winding code
- 15.5
- Cover style
- Standard (0)
- Copper weight
- 15 g
- Total weight
- 97 g
- Pin configuration
- 1-5 / 7-9 · 1-5 / 6-7 + 9-10
- Certifications
- EN 61558
- Part numbers
- 14 on this datasheet
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
Datasheet

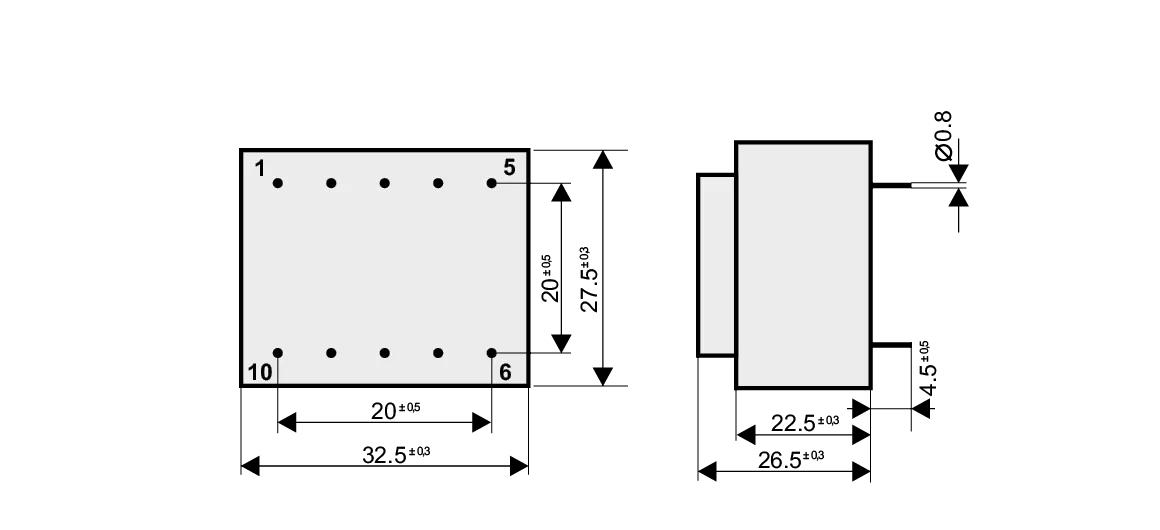

Factory datasheet for the 2VA-EI30-15.5 series — dimensions, winding table, and pin layout for every part number on this page. PDF, opens in a new tab.
2VA-EI30-15.5.pdf
Part numbers in this series
Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.
14 rows
| ASL104106 | 6 V | 333 | 10.1 V | 1-5 / 7-9 |
|---|---|---|---|---|
| ASL104108 | 7.5 V | 267 | 12.7 V | 1-5 / 7-9 |
| ASL104109 | 9 V | 222 | 15.7 V | 1-5 / 7-9 |
| ASL104112 | 12 V | 166 | 20.6 V | 1-5 / 7-9 |
| ASL104115 | 15 V | 133 | 26.4 V | 1-5 / 7-9 |
| ASL104118 | 18 V | 111 | 30.3 V | 1-5 / 7-9 |
| ASL104124 | 24 V | 83 | 39.7 V | 1-5 / 7-9 |
| ASL104206 | 2 × 6 V | 166 | 10.2 V | 1-5 / 6-7 + 9-10 |
| ASL104208 | 2 × 7.5 V | 133 | 12.6 V | 1-5 / 6-7 + 9-10 |
| ASL104209 | 2 × 9 V | 111 | 16 V | 1-5 / 6-7 + 9-10 |
| ASL104212 | 2 × 12 V | 83 | 19.5 V | 1-5 / 6-7 + 9-10 |
| ASL104215 | 2 × 15 V | 66 | 23.5 V | 1-5 / 6-7 + 9-10 |
| ASL104218 | 2 × 18 V | 55 | 28.8 V | 1-5 / 6-7 + 9-10 |
| ASL104224 | 2 × 24 V | 41 | 37.7 V | 1-5 / 6-7 + 9-10 |
Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
Next step
Need a winding this datasheet does not cover?
Every part on this page is wound to order, so a secondary voltage, a cover style, or a footprint outside the standard table is a quote, not a refusal.
