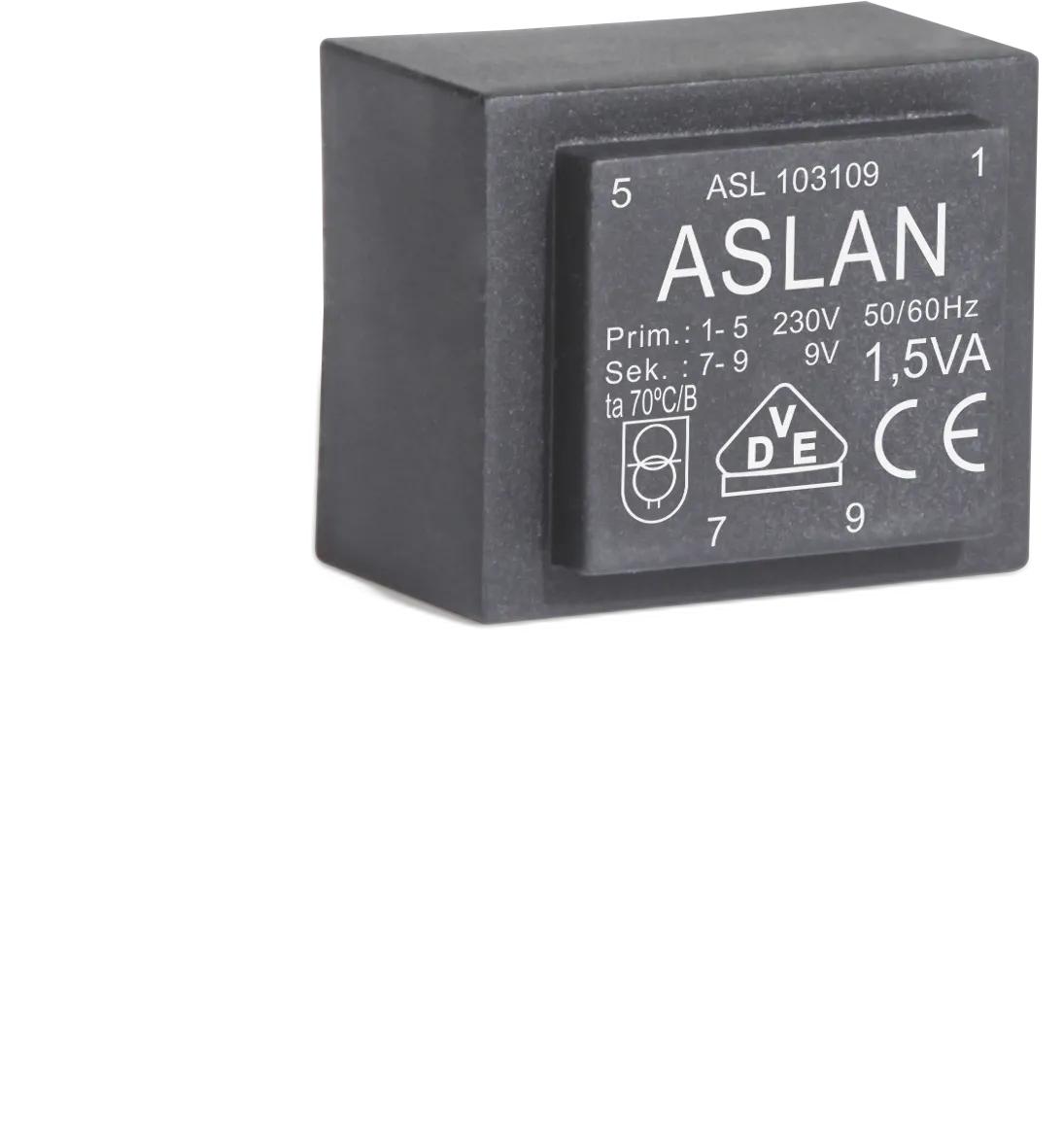

EI30 series
1.5VA-EI30-12.5
1.5 VA · EI30 core · Standard (0) · 230 V primary · 14 part numbers
Series specifications
- Core
- EI30
- Rated power
- 1.5 VA
- Primary
- 230 V (single winding)
- Secondary
- 6–24 V per winding · single or dual
- Winding code
- 12.5
- Cover style
- Standard (0)
- Copper weight
- 13 g
- Total weight
- 85 g
- Pin configuration
- 1-5 / 7-9 · 1-5 / 6-7 + 9-10
- Certifications
- EN 61558
- Part numbers
- 14 on this datasheet
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
Datasheet

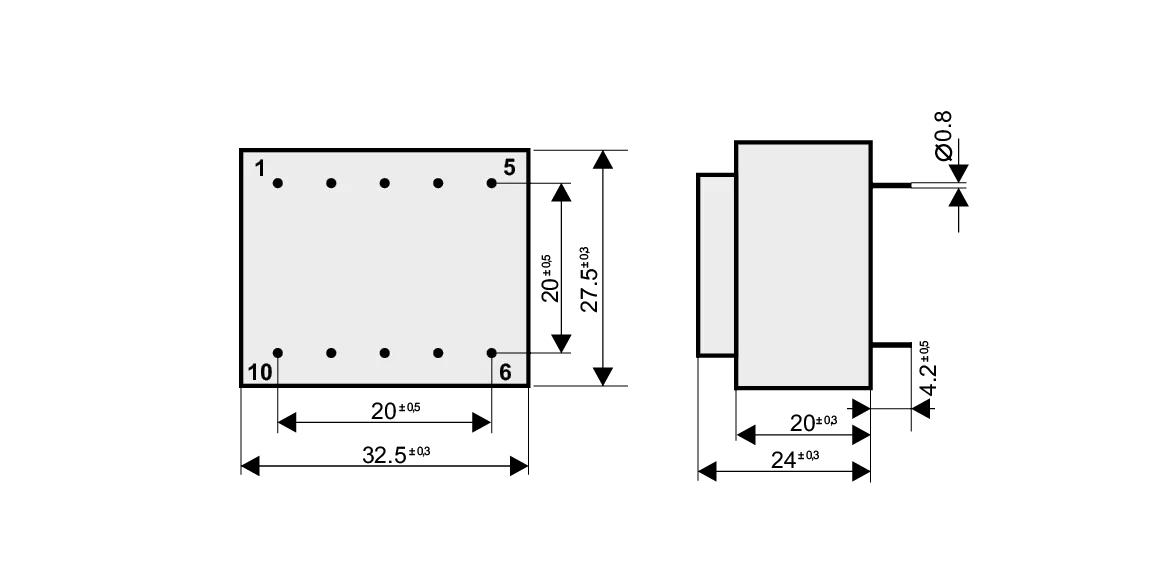

Factory datasheet for the 1.5VA-EI30-12.5 series — dimensions, winding table, and pin layout for every part number on this page. PDF, opens in a new tab.
1.5VA-EI30-12.5.pdf
Part numbers in this series
Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.
14 rows
| ASL103106 | 6 V | 250 | 9.1 V | 1-5 / 7-9 |
|---|---|---|---|---|
| ASL103108 | 7.5 V | 200 | 11.6 V | 1-5 / 7-9 |
| ASL103109 | 9 V | 166 | 13.9 V | 1-5 / 7-9 |
| ASL103112 | 12 V | 125 | 18.6 V | 1-5 / 7-9 |
| ASL103115 | 15 V | 100 | 23 V | 1-5 / 7-9 |
| ASL103118 | 18 V | 83 | 27.6 V | 1-5 / 7-9 |
| ASL103124 | 24 V | 62.5 | 36.5 V | 1-5 / 7-9 |
| ASL103206 | 2 × 6 V | 125 | 9 V | 1-5 / 6-7 + 9-10 |
| ASL103208 | 2 × 7.5 V | 100 | 11.2 V | 1-5 / 6-7 + 9-10 |
| ASL103209 | 2 × 9 V | 83 | 13.3 V | 1-5 / 6-7 + 9-10 |
| ASL103212 | 2 × 12 V | 62.5 | 18 V | 1-5 / 6-7 + 9-10 |
| ASL103215 | 2 × 15 V | 50 | 23.2 V | 1-5 / 6-7 + 9-10 |
| ASL103218 | 2 × 18 V | 41.6 | 26.9 V | 1-5 / 6-7 + 9-10 |
| ASL103224 | 2 × 24 V | 31.2 | 36.9 V | 1-5 / 6-7 + 9-10 |
Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
