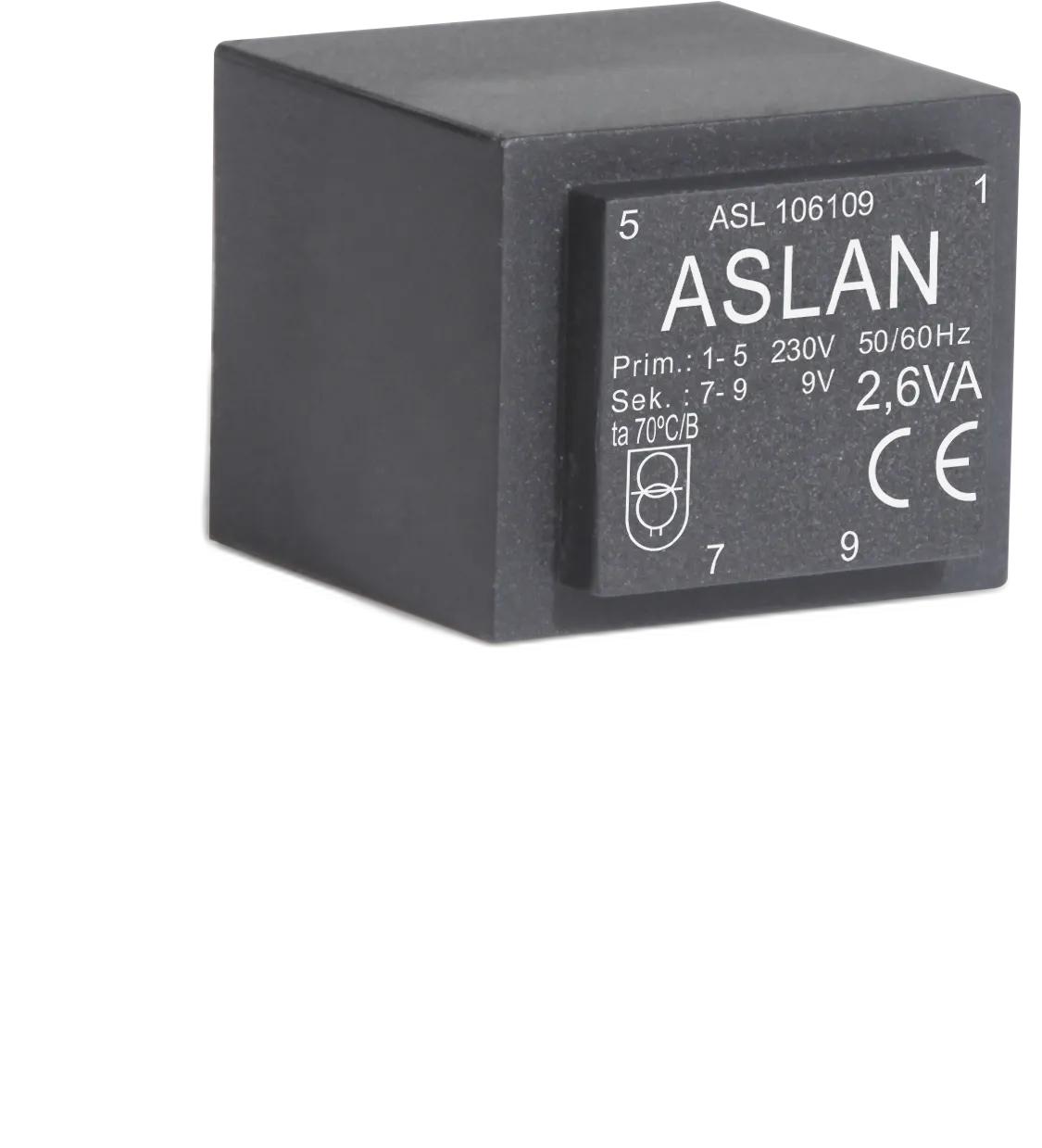

EI30 series
2.6VA-EI30-24
2.6 VA · EI30 core · Standard (0) · 230 V primary · 14 part numbers
Series specifications
- Core
- EI30
- Rated power
- 2.6 VA
- Primary
- 230 V (single winding)
- Secondary
- 6–24 V per winding · single or dual
- Winding code
- 24
- Cover style
- Standard (0)
- Copper weight
- 20 g
- Total weight
- 145 g
- Pin configuration
- 1-5 / 7-9 · 1-5 / 6-7 + 9-10
- Certifications
- EN 61558
- Part numbers
- 14 on this datasheet
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
Datasheet

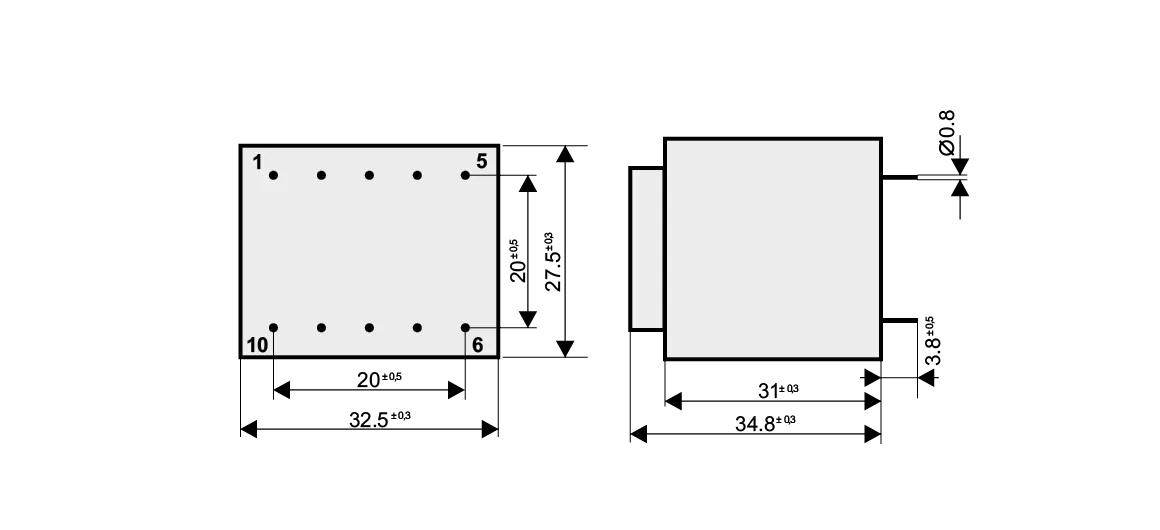

Factory datasheet for the 2.6VA-EI30-24 series — dimensions, winding table, and pin layout for every part number on this page. PDF, opens in a new tab.
2.6VA-EI30-24.pdf
Part numbers in this series
Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.
14 rows
| ASL106106 | 6 V | 433 | 10 V | 1-5 / 7-9 |
|---|---|---|---|---|
| ASL106108 | 7.5 V | 346 | 11.5 V | 1-5 / 7-9 |
| ASL106109 | 9 V | 288 | 14.4 V | 1-5 / 7-9 |
| ASL106112 | 12 V | 216 | 20 V | 1-5 / 7-9 |
| ASL106115 | 15 V | 173 | 23.5 V | 1-5 / 7-9 |
| ASL106118 | 18 V | 144 | 29.1 V | 1-5 / 7-9 |
| ASL106124 | 24 V | 108 | 36.3 V | 1-5 / 7-9 |
| ASL106206 | 2 × 6 V | 216 | 9.8 V | 1-5 / 6-7 + 9-10 |
| ASL106208 | 2 × 7.5 V | 173 | 11.5 V | 1-5 / 6-7 + 9-10 |
| ASL106209 | 2 × 9 V | 144 | 14.3 V | 1-5 / 6-7 + 9-10 |
| ASL106212 | 2 × 12 V | 108 | 19.1 V | 1-5 / 6-7 + 9-10 |
| ASL106215 | 2 × 15 V | 86 | 23.4 V | 1-5 / 6-7 + 9-10 |
| ASL106218 | 2 × 18 V | 72 | 27.6 V | 1-5 / 6-7 + 9-10 |
| ASL106224 | 2 × 24 V | 54 | 36.9 V | 1-5 / 6-7 + 9-10 |
Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
Next step
Need a winding this datasheet does not cover?
Every part on this page is wound to order, so a secondary voltage, a cover style, or a footprint outside the standard table is a quote, not a refusal.
