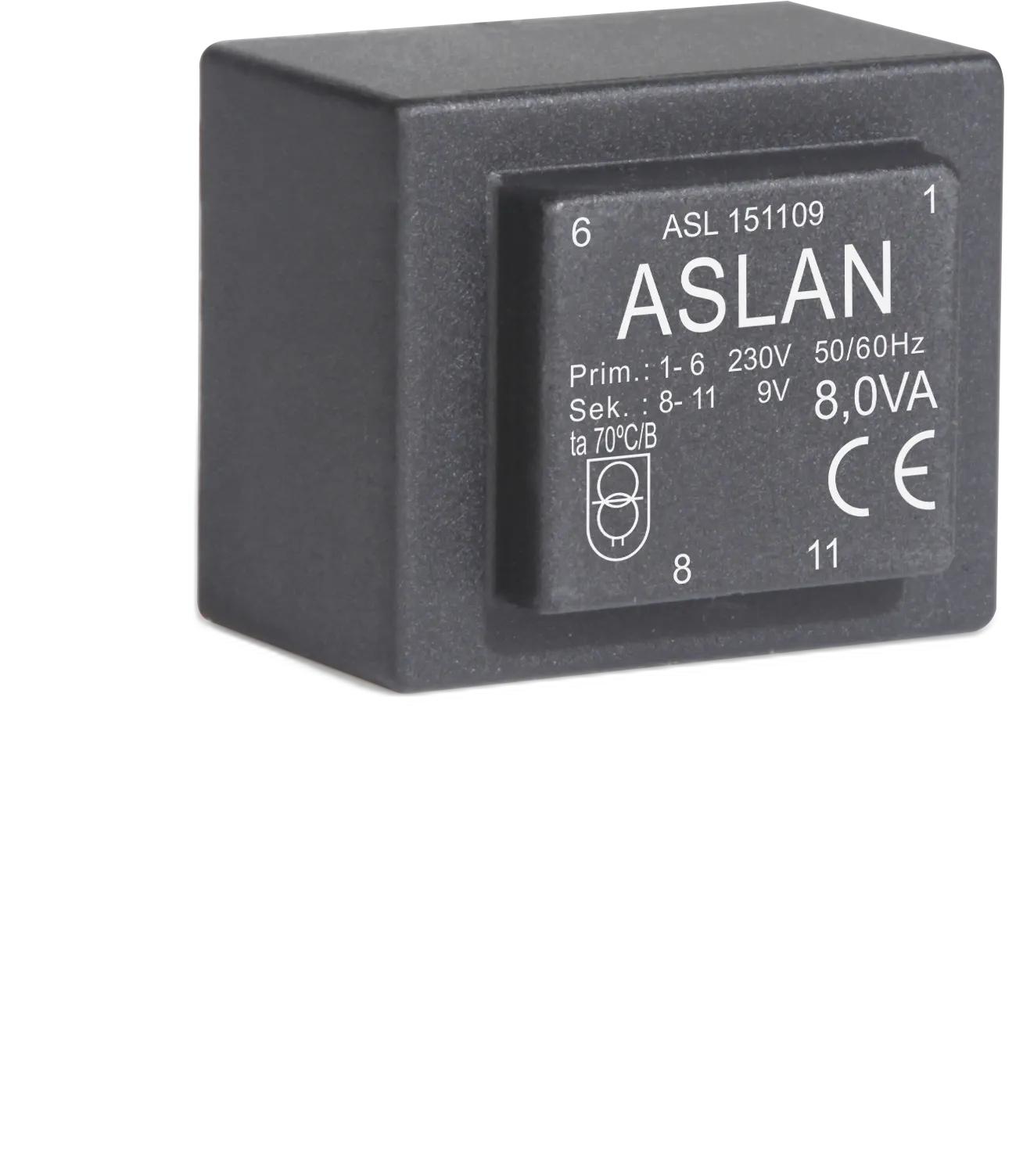

EI42 series
8VA-EI42-20.5
8 VA · EI42 core · Standard (0) · 230 V primary · 14 part numbers
Series specifications
- Core
- EI42
- Rated power
- 8 VA
- Primary
- 230 V (single winding)
- Secondary
- 6–24 V per winding · single or dual
- Pin spacing
- 25 mm
- Winding code
- 20.5
- Cover style
- Standard (0)
- Copper weight
- 40 g
- Total weight
- 252 g
- Pin configuration
- 1-6 / 8-11 · 1-6 / 7-8 + 11-12
- Certifications
- EN 61558
- Part numbers
- 14 on this datasheet
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
Datasheet

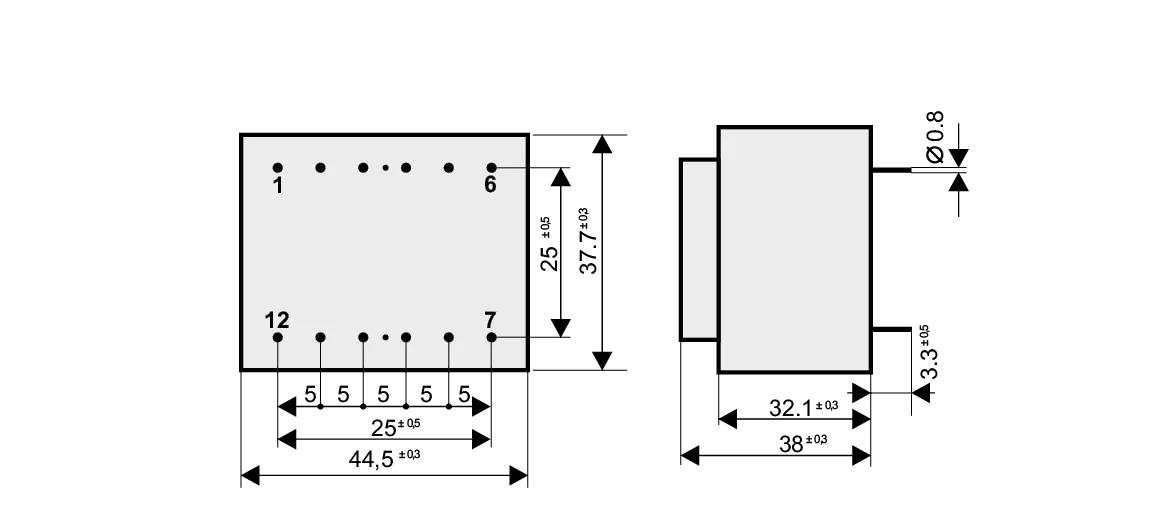

Factory datasheet for the 8VA-EI42-20.5 series — dimensions, winding table, and pin layout for every part number on this page. PDF, opens in a new tab.
8VA-EI42-20.5.pdf
Part numbers in this series
Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.
14 rows
| ASL151106 | 6 V | 1,333 | 7.8 V | 1-6 / 8-11 |
|---|---|---|---|---|
| ASL151108 | 7.5 V | 1,066 | 9.7 V | 1-6 / 8-11 |
| ASL151109 | 9 V | 888 | 11.9 V | 1-6 / 8-11 |
| ASL151112 | 12 V | 666 | 15.75 V | 1-6 / 8-11 |
| ASL151115 | 15 V | 533 | 19.7 V | 1-6 / 8-11 |
| ASL151118 | 18 V | 444 | 23.5 V | 1-6 / 8-11 |
| ASL151124 | 24 V | 333 | 31.4 V | 1-6 / 8-11 |
| ASL151206 | 2 × 6 V | 666 | 7.85 V | 1-6 / 7-8 + 11-12 |
| ASL151208 | 2 × 7.5 V | 533 | 9.7 V | 1-6 / 7-8 + 11-12 |
| ASL151209 | 2 × 9 V | 444 | 12 V | 1-6 / 7-8 + 11-12 |
| ASL151212 | 2 × 12 V | 333 | 15.7 V | 1-6 / 7-8 + 11-12 |
| ASL151215 | 2 × 15 V | 266 | 19.65 V | 1-6 / 7-8 + 11-12 |
| ASL151218 | 2 × 18 V | 222 | 23.7 V | 1-6 / 7-8 + 11-12 |
| ASL151224 | 2 × 24 V | 166 | 31.4 V | 1-6 / 7-8 + 11-12 |
Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
