EI42 series

3VA-EI42-8.5

3 VA · EI42 core · Standard (0) · 230 V primary · 14 part numbers

DiscontinuedDatasheet (PDF)Request a quote

This series has been withdrawn from the current catalog

The 3VA-EI42-8.5 datasheet is no longer part of pcb mount transformers production and these part numbers cannot be ordered. The page and the drawing stay published for anyone maintaining a design that already uses one — open a part number below to see the active parts it can be requoted against.

Send the specification and we will quote the same wind as a custom build.

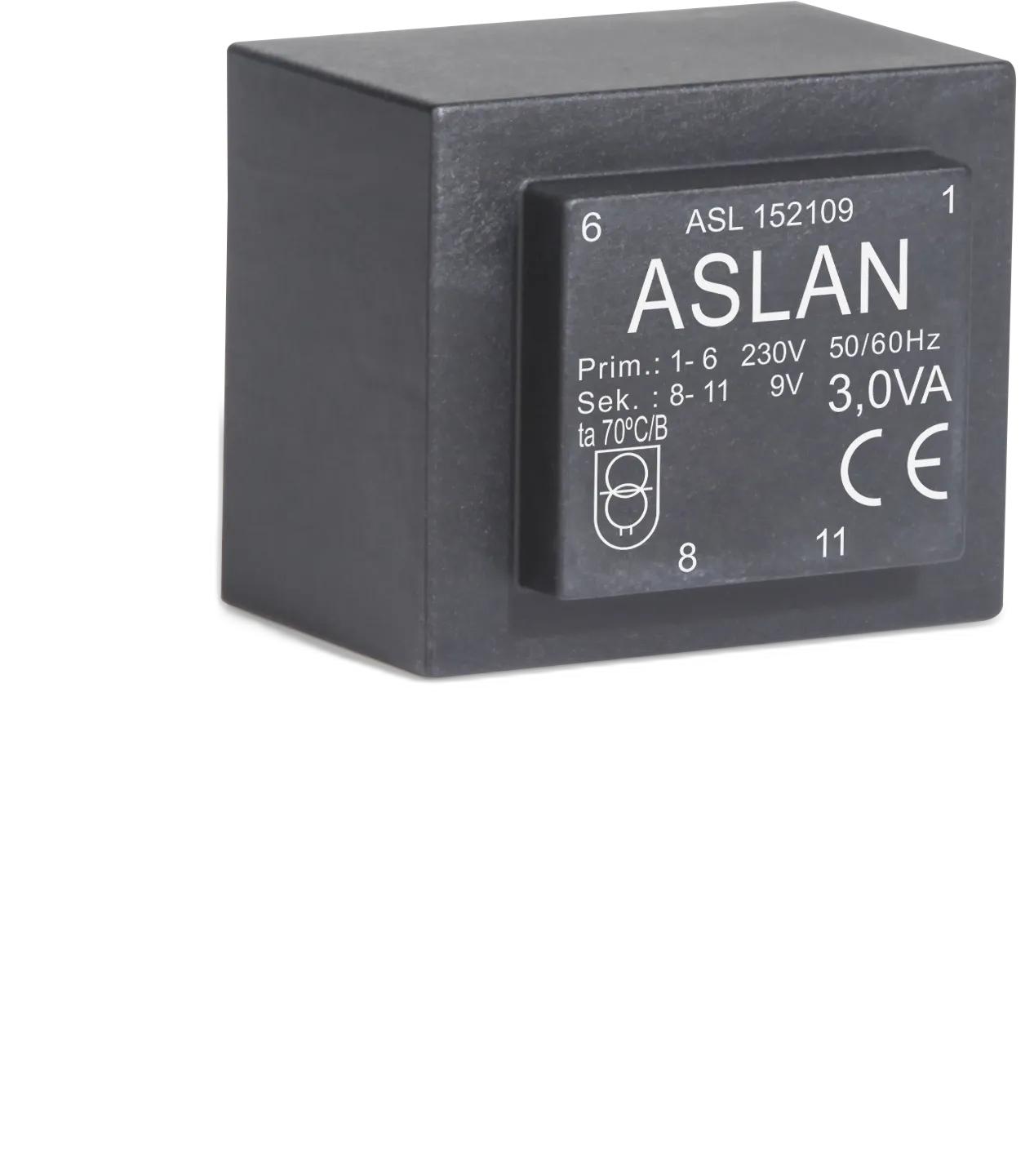

Photograph of an Aslan 3VA-EI42-8.5 EI42 transformer — 3VA-EI42-8.5 as supplied — Standard (0). The winding printed on the label is one of the part numbers listed below.

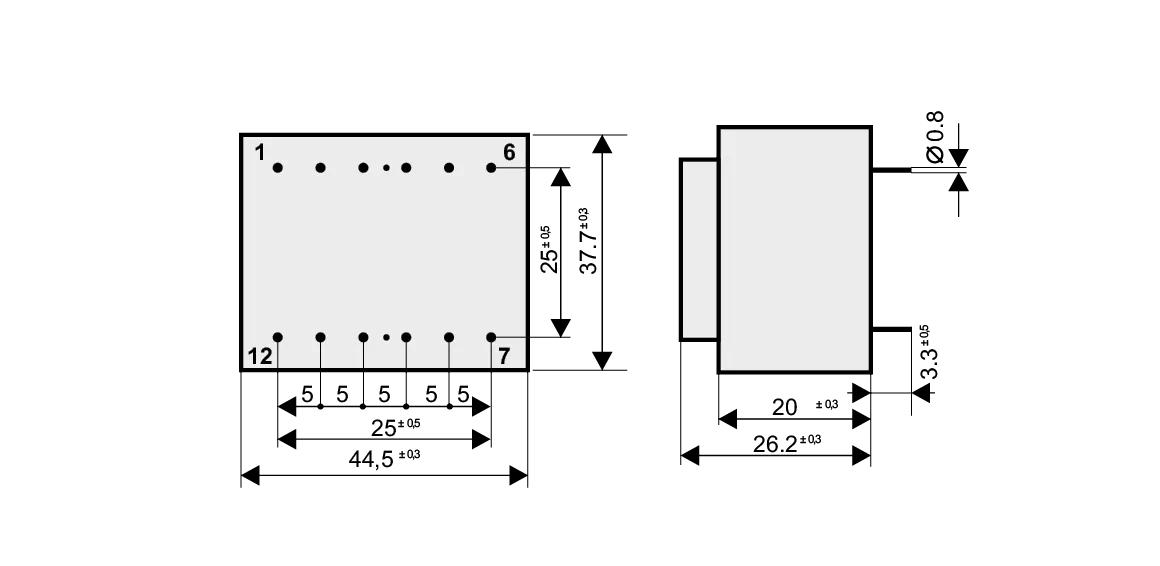

Dimensioned drawing of the 3VA-EI42-8.5 transformer: outline, mounting height, and pin layout — Outline and pin layout — millimetres, 25 mm pin spacing. Every part number on the 3VA-EI42-8.5 datasheet shares this footprint.

Series specifications

Core: EI42
Rated power: 3 VA
Primary: 230 V (single winding)
Secondary: 6–24 V per winding · single or dual
Pin spacing: 25 mm
Winding code: 8.5
Cover style: Standard (0)
Copper weight: 25 g
Total weight: 150 g
Pin configuration: 1-6 / 8-11 · 1-6 / 7-8 + 11-12
Certifications: EN 61558
Part numbers: 14 on this datasheet

Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.

Datasheet

Archive copy

Factory datasheet for the withdrawn 3VA-EI42-8.5 series, kept here for anyone maintaining a design that already uses one. PDF, opens in a new tab.

3VA-EI42-8.5.pdf

Download datasheet

Part numbers in this series

Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.

Filter this table

14 rows

3VA-EI42-8.5 — part numbers

ASL152106	6 V	500	8.9 V	1-6 / 8-11
ASL152108	7.5 V	400	11 V	1-6 / 8-11
ASL152109	9 V	333	13.2 V	1-6 / 8-11
ASL152112	12 V	250	17 V	1-6 / 8-11
ASL152115	15 V	200	21.35 V	1-6 / 8-11
ASL152118	18 V	167	25.7 V	1-6 / 8-11
ASL152124	24 V	125	33.8 V	1-6 / 8-11
ASL152206	2 × 6 V	250	8.8 V	1-6 / 7-8 + 11-12
ASL152208	2 × 7.5 V	200	11 V	1-6 / 7-8 + 11-12
ASL152209	2 × 9 V	167	13.35 V	1-6 / 7-8 + 11-12
ASL152212	2 × 12 V	125	17.2 V	1-6 / 7-8 + 11-12
ASL152215	2 × 15 V	100	21.3 V	1-6 / 7-8 + 11-12
ASL152218	2 × 18 V	83	24.9 V	1-6 / 7-8 + 11-12
ASL152224	2 × 24 V	62.5	34 V	1-6 / 7-8 + 11-12

Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
