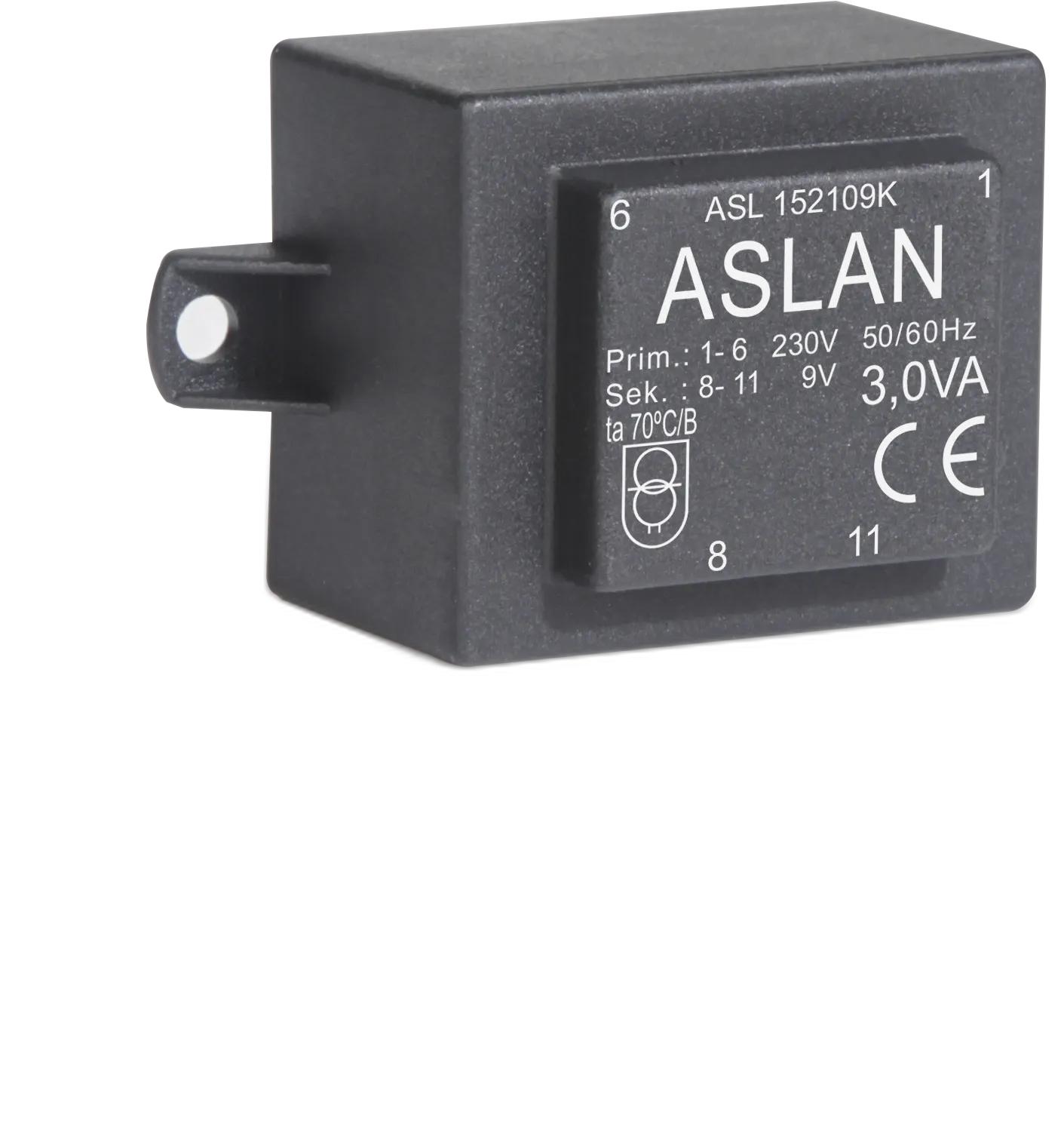

EI42 series
3VA-EI42-8.5-K
3 VA · EI42 core · K (cover) · 230 V primary · 14 part numbers
Series specifications
- Core
- EI42
- Rated power
- 3 VA
- Primary
- 230 V (single winding)
- Secondary
- 6–24 V per winding · single or dual
- Pin spacing
- 25 mm
- Winding code
- 8.5
- Cover style
- K (cover)
- Copper weight
- 25 g
- Total weight
- 150 g
- Pin configuration
- 1-6 / 8-11 · 1-6 / 7-8 + 11-12
- Certifications
- EN 61558
- Part numbers
- 14 on this datasheet
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
Datasheet

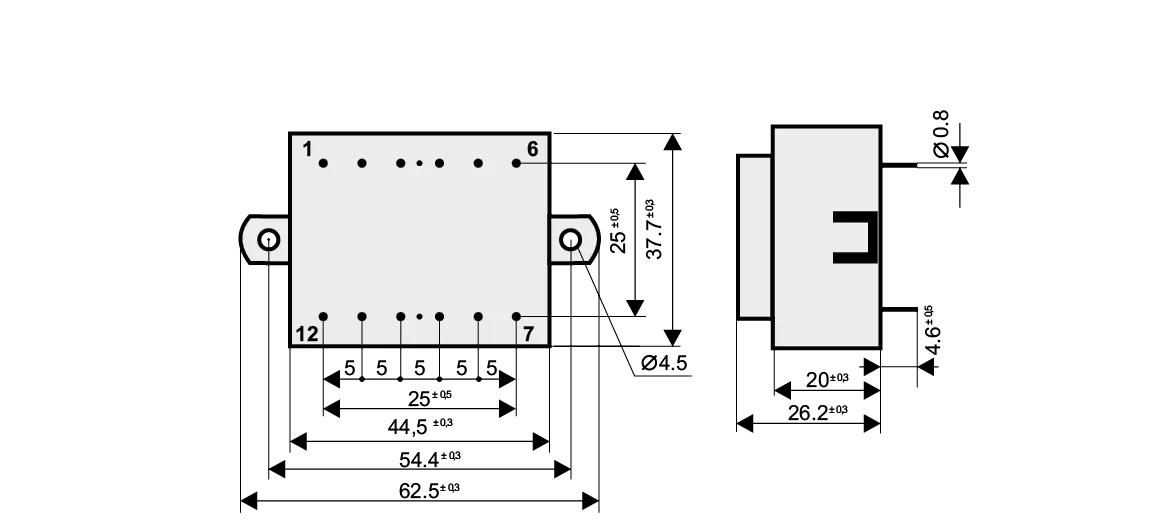

Factory datasheet for the 3VA-EI42-8.5-K series — dimensions, winding table, and pin layout for every part number on this page. PDF, opens in a new tab.
3VA-EI42-8.5-K.pdf
Part numbers in this series
Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.
14 rows
| ASL152106K | 6 V | 500 | 8.9 V | 1-6 / 8-11 |
|---|---|---|---|---|
| ASL152108K | 7.5 V | 400 | 11 V | 1-6 / 8-11 |
| ASL152109K | 9 V | 333 | 13.2 V | 1-6 / 8-11 |
| ASL152112K | 12 V | 250 | 17 V | 1-6 / 8-11 |
| ASL152115K | 15 V | 200 | 21.35 V | 1-6 / 8-11 |
| ASL152118K | 18 V | 167 | 25.7 V | 1-6 / 8-11 |
| ASL152124K | 24 V | 125 | 33.8 V | 1-6 / 8-11 |
| ASL152206K | 2 × 6 V | 250 | 8.8 V | 1-6 / 7-8 + 11-12 |
| ASL152208K | 2 × 7.5 V | 200 | 11 V | 1-6 / 7-8 + 11-12 |
| ASL152209K | 2 × 9 V | 167 | 13.35 V | 1-6 / 7-8 + 11-12 |
| ASL152212K | 2 × 12 V | 125 | 17.2 V | 1-6 / 7-8 + 11-12 |
| ASL152215K | 2 × 15 V | 100 | 21.3 V | 1-6 / 7-8 + 11-12 |
| ASL152218K | 2 × 18 V | 83 | 24.9 V | 1-6 / 7-8 + 11-12 |
| ASL152224K | 2 × 24 V | 62.5 | 34 V | 1-6 / 7-8 + 11-12 |
Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
