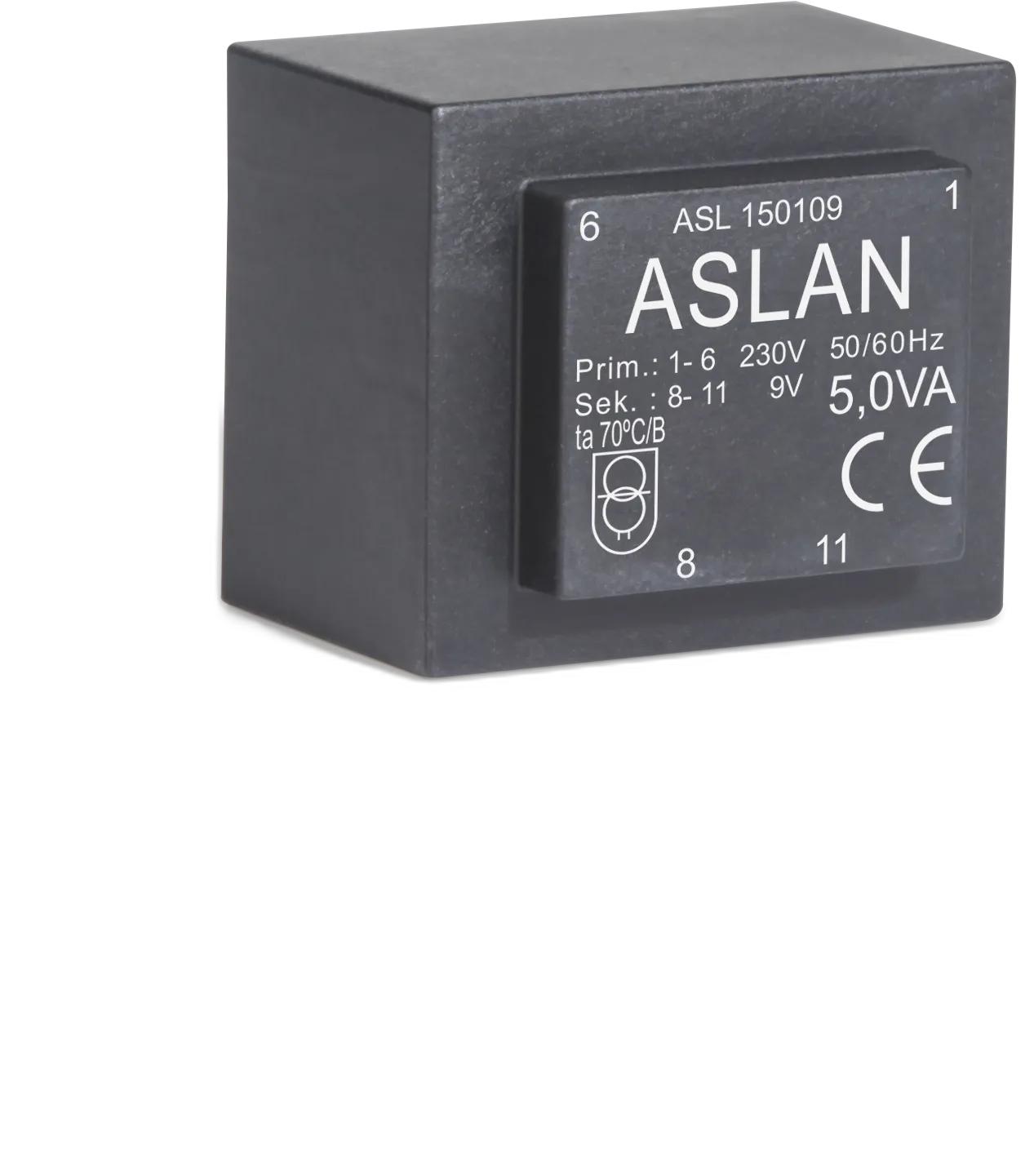

EI42 series
5VA-EI42-14.8
5 VA · EI42 core · Standard (0) · 230 V primary · 14 part numbers
Series specifications
- Core
- EI42
- Rated power
- 5 VA
- Primary
- 230 V (single winding)
- Secondary
- 6–24 V per winding · single or dual
- Pin spacing
- 25 mm
- Winding code
- 14.8
- Cover style
- Standard (0)
- Copper weight
- 30 g
- Total weight
- 190 g
- Pin configuration
- 1-6 / 8-11 · 1-6 / 7-8 + 11-12
- Certifications
- EN 61558
- Part numbers
- 14 on this datasheet
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
Datasheet

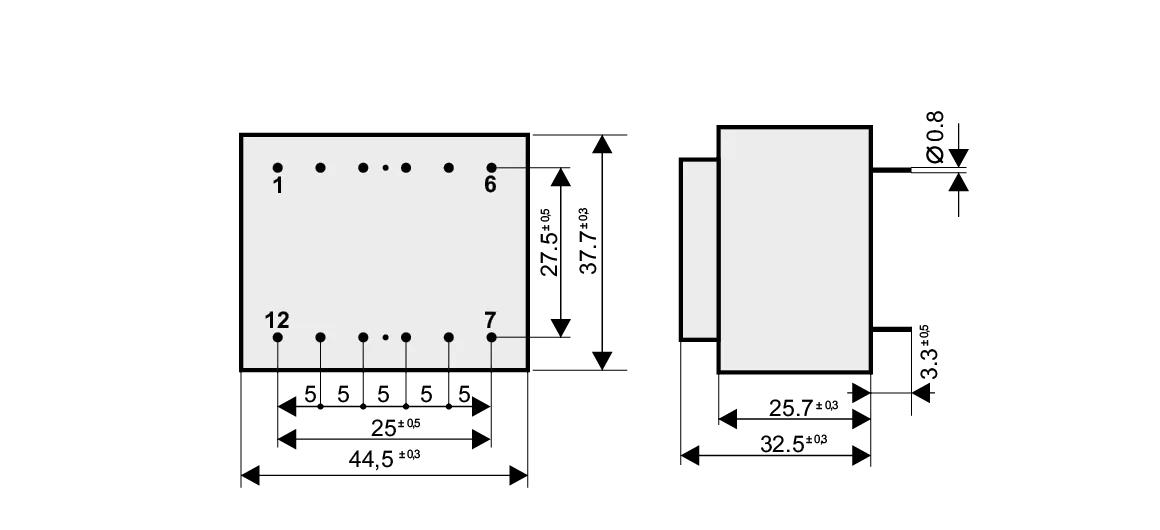

Factory datasheet for the 5VA-EI42-14.8 series — dimensions, winding table, and pin layout for every part number on this page. PDF, opens in a new tab.
5VA-EI42-14.8.pdf
Part numbers in this series
Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.
14 rows
| ASL150106 | 6 V | 833 | 7.9 V | 1-6 / 8-11 |
|---|---|---|---|---|
| ASL150108 | 7.5 V | 666 | 9.9 V | 1-6 / 8-11 |
| ASL150109 | 9 V | 555 | 11.9 V | 1-6 / 8-11 |
| ASL150112 | 12 V | 416 | 15.8 V | 1-6 / 8-11 |
| ASL150115 | 15 V | 333 | 19.8 V | 1-6 / 8-11 |
| ASL150118 | 18 V | 277 | 24.1 V | 1-6 / 8-11 |
| ASL150124 | 24 V | 208 | 31.3 V | 1-6 / 8-11 |
| ASL150206 | 2 × 6 V | 416 | 7.8 V | 1-6 / 7-8 + 11-12 |
| ASL150208 | 2 × 7.5 V | 333 | 9.7 V | 1-6 / 7-8 + 11-12 |
| ASL150209 | 2 × 9 V | 277 | 11.7 V | 1-6 / 7-8 + 11-12 |
| ASL150212 | 2 × 12 V | 208 | 15.4 V | 1-6 / 7-8 + 11-12 |
| ASL150215 | 2 × 15 V | 166 | 19.3 V | 1-6 / 7-8 + 11-12 |
| ASL150218 | 2 × 18 V | 138 | 23.1 V | 1-6 / 7-8 + 11-12 |
| ASL150224 | 2 × 24 V | 104 | 30.6 V | 1-6 / 7-8 + 11-12 |
Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
Next step
Need a winding this datasheet does not cover?
Every part on this page is wound to order, so a secondary voltage, a cover style, or a footprint outside the standard table is a quote, not a refusal.
