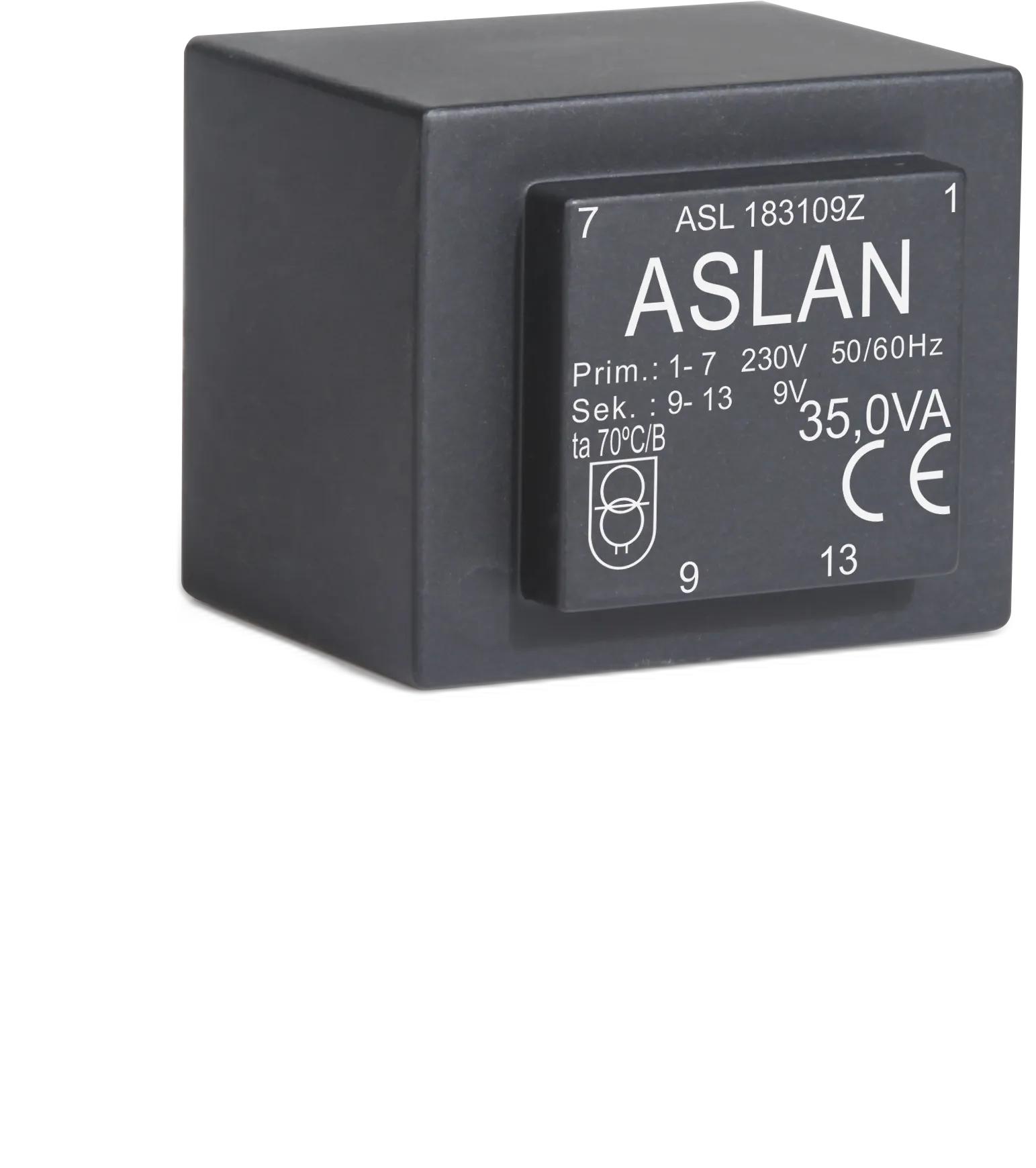

EI60 series
35VA-EI60-35
35 VA · EI60 core · Standard (0) · 230 V primary · 14 part numbers
Series specifications
- Core
- EI60
- Rated power
- 35 VA
- Primary
- 230 V (single winding)
- Secondary
- 6–24 V per winding · single or dual
- Pin spacing
- 32.5 mm
- Winding code
- 35
- Cover style
- Standard (0)
- Copper weight
- 125 g
- Total weight
- 860 g
- Pin configuration
- 1-7 / 9-13 · 1-7 / 8-9 + 13-14
- Certifications
- EN 61558
- Part numbers
- 14 on this datasheet
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
Datasheet

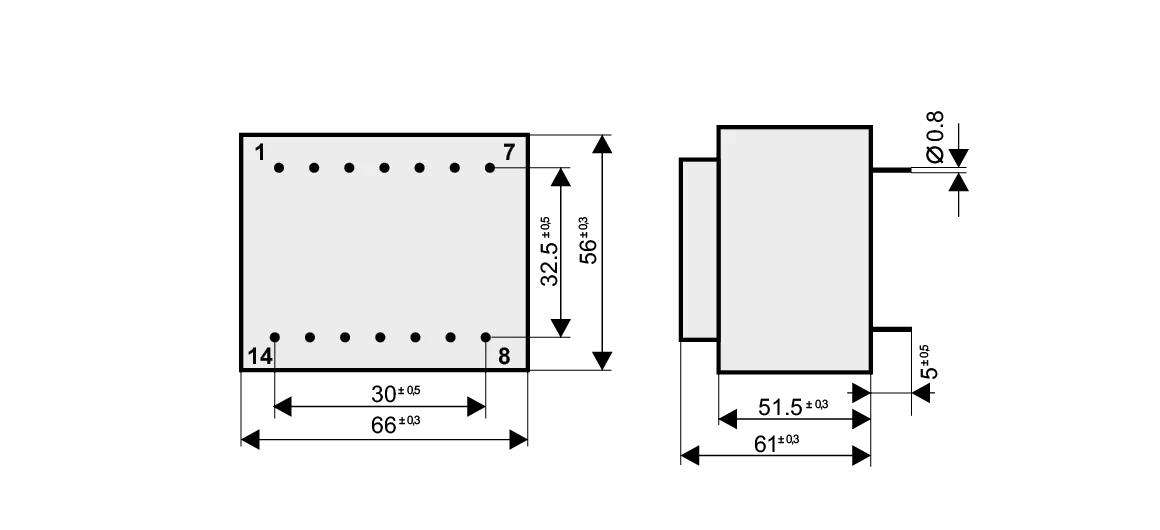

Factory datasheet for the 35VA-EI60-35 series — dimensions, winding table, and pin layout for every part number on this page. PDF, opens in a new tab.
35VA-EI60-35.pdf
Part numbers in this series
Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.
14 rows
| ASL183106Z | 6 V | 5,830 | 6.8 V | 1-7 / 9-13 |
|---|---|---|---|---|
| ASL183108Z | 7.5 V | 4,660 | 8.5 V | 1-7 / 9-13 |
| ASL183109Z | 9 V | 3,890 | 10.4 V | 1-7 / 9-13 |
| ASL183112Z | 12 V | 2,920 | 13.45 V | 1-7 / 9-13 |
| ASL183115Z | 15 V | 2,330 | 16.8 V | 1-7 / 9-13 |
| ASL183118Z | 18 V | 1,940 | 20.5 V | 1-7 / 9-13 |
| ASL183124Z | 24 V | 1,460 | 27.3 V | 1-7 / 9-13 |
| ASL183206Z | 2 × 6 V | 2,920 | 6.75 V | 1-7 / 8-9 + 13-14 |
| ASL183208Z | 2 × 7.5 V | 2,330 | 8.5 V | 1-7 / 8-9 + 13-14 |
| ASL183209Z | 2 × 9 V | 1,940 | 10.3 V | 1-7 / 8-9 + 13-14 |
| ASL183212Z | 2 × 12 V | 1,460 | 13.55 V | 1-7 / 8-9 + 13-14 |
| ASL183215Z | 2 × 15 V | 1,170 | 16.8 V | 1-7 / 8-9 + 13-14 |
| ASL183218Z | 2 × 18 V | 970 | 20.25 V | 1-7 / 8-9 + 13-14 |
| ASL183224Z | 2 × 24 V | 730 | 27.3 V | 1-7 / 8-9 + 13-14 |
Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
