EI60 series

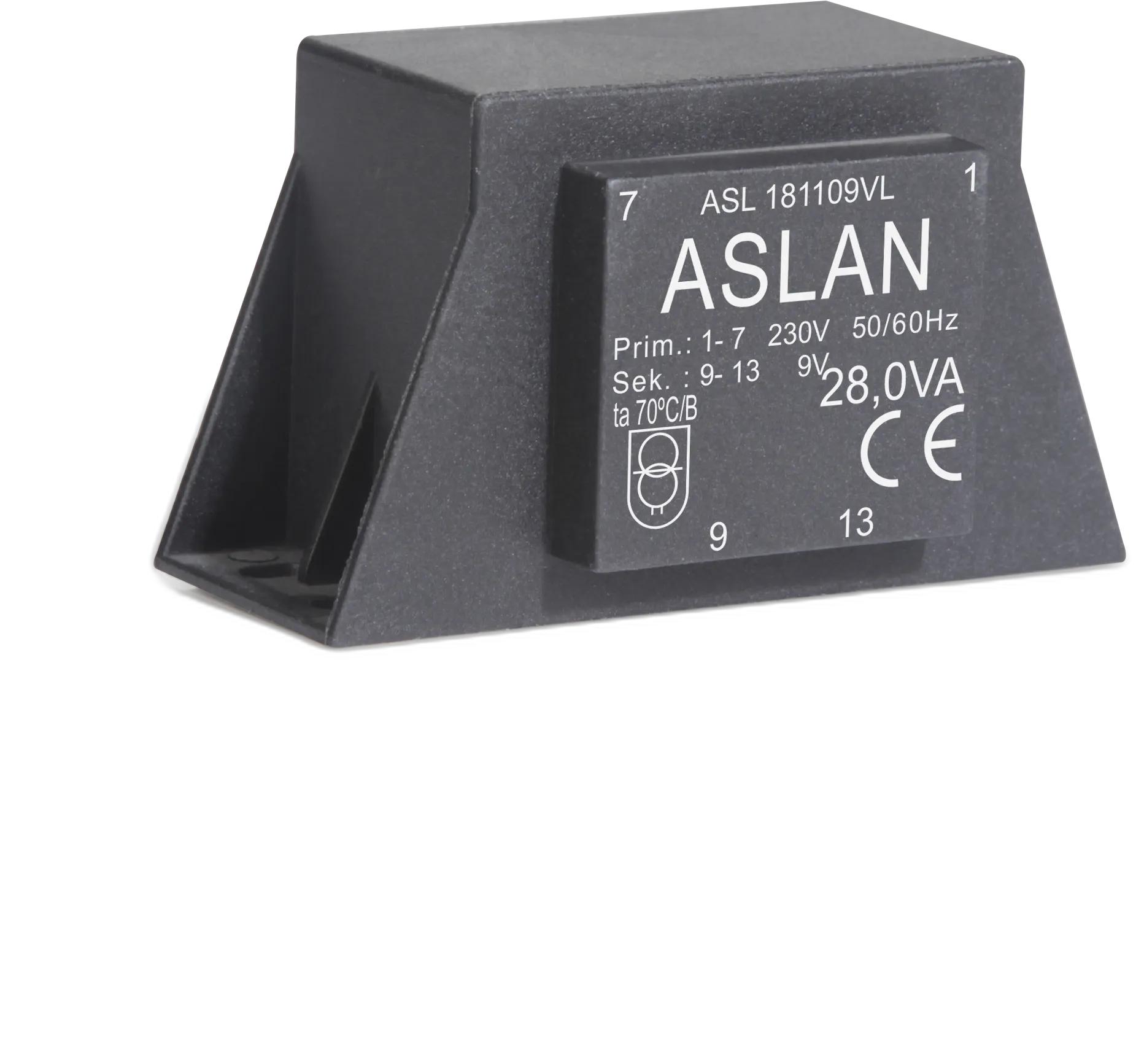

28VA-EI60-25.5-VL
28 VA · EI60 core · VL (flying leads) · 230 V primary · 14 part numbers
Series specifications
- Core
- EI60
- Rated power
- 28 VA
- Primary
- 230 V (single winding)
- Secondary
- 6–24 V per winding · single or dual
- Pin spacing
- 32.5 mm
- Winding code
- 25.5
- Cover style
- VL (flying leads)
- Copper weight
- 120 g
- Total weight
- 670 g
- Pin configuration
- 1-7 / 9-13 · 1-7 / 8-9 + 13-14
- Certifications
- EN 61558
- Part numbers
- 14 on this datasheet
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
Datasheet

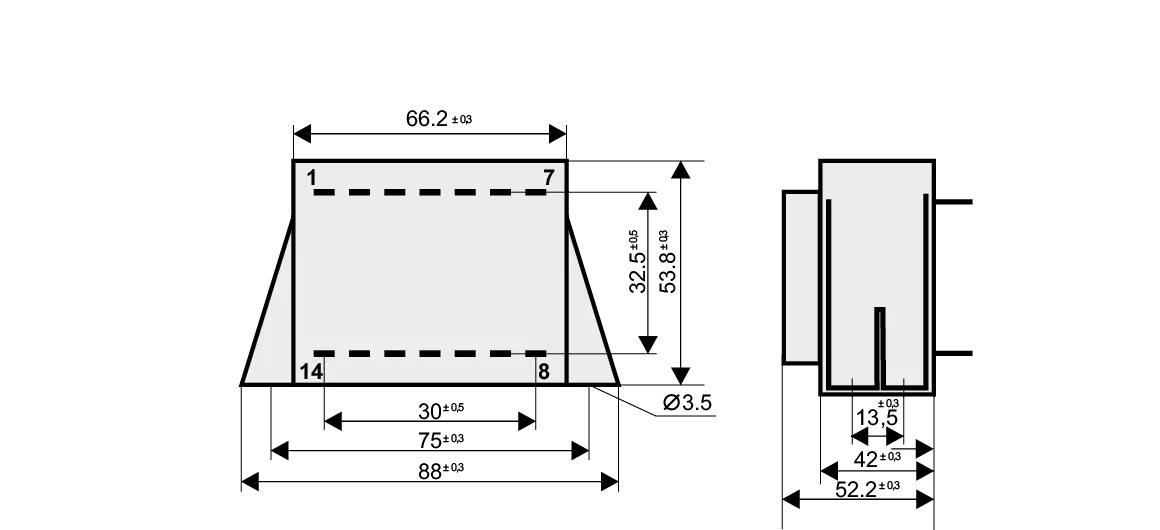

Factory datasheet for the 28VA-EI60-25.5-VL series — dimensions, winding table, and pin layout for every part number on this page. PDF, opens in a new tab.
28VA-EI60-25.5-VL.pdf
Part numbers in this series
Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.
14 rows
| ASL181106VL | 6 V | 4,670 | 7.3 V | 1-7 / 9-13 |
|---|---|---|---|---|
| ASL181108VL | 7.5 V | 3,730 | 9 V | 1-7 / 9-13 |
| ASL181109VL | 9 V | 3,110 | 10.88 V | 1-7 / 9-13 |
| ASL181112VL | 12 V | 2,330 | 14.29 V | 1-7 / 9-13 |
| ASL181115VL | 15 V | 1,870 | 17.88 V | 1-7 / 9-13 |
| ASL181118VL | 18 V | 1,560 | 21.46 V | 1-7 / 9-13 |
| ASL181124VL | 24 V | 1,170 | 28.6 V | 1-7 / 9-13 |
| ASL181206VL | 2 × 6 V | 2,330 | 7.3 V | 1-7 / 8-9 + 13-14 |
| ASL181208VL | 2 × 7.5 V | 1,870 | 8.85 V | 1-7 / 8-9 + 13-14 |
| ASL181209VL | 2 × 9 V | 1,560 | 10.57 V | 1-7 / 8-9 + 13-14 |
| ASL181212VL | 2 × 12 V | 1,170 | 14.05 V | 1-7 / 8-9 + 13-14 |
| ASL181215VL | 2 × 15 V | 930 | 17.45 V | 1-7 / 8-9 + 13-14 |
| ASL181218VL | 2 × 18 V | 780 | 21.15 V | 1-7 / 8-9 + 13-14 |
| ASL181224VL | 2 × 24 V | 580 | 28.61 V | 1-7 / 8-9 + 13-14 |
Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
Next step
Need a winding this datasheet does not cover?
Every part on this page is wound to order, so a secondary voltage, a cover style, or a footprint outside the standard table is a quote, not a refusal.
