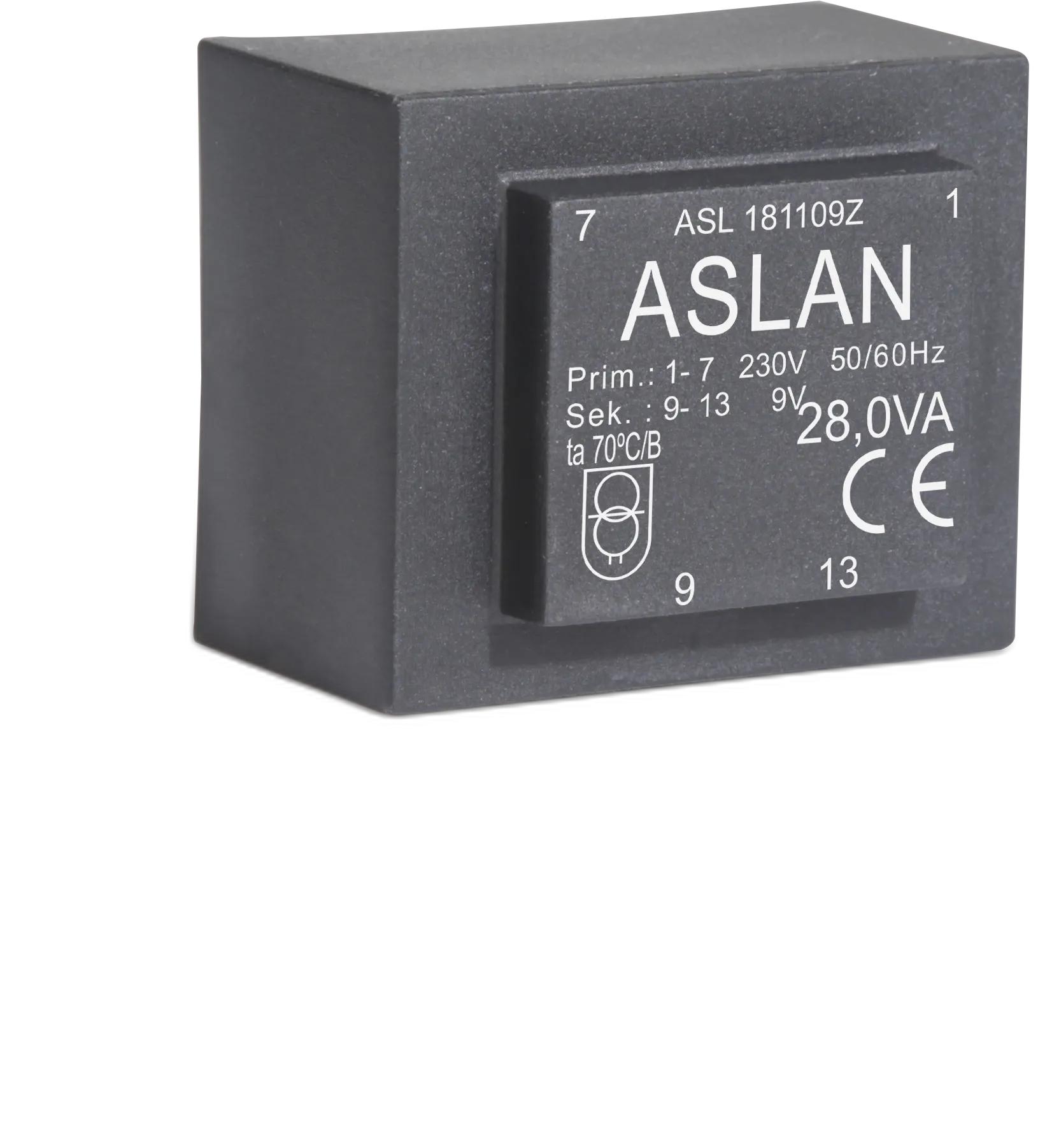

EI60 series
32VA-EI60-30.5
32 VA · EI60 core · Standard (0) · 230 V primary · 14 part numbers
Series specifications
- Core
- EI60
- Rated power
- 32 VA
- Primary
- 230 V (single winding)
- Secondary
- 6–24 V per winding · single or dual
- Pin spacing
- 32.5 mm
- Winding code
- 30.5
- Cover style
- Standard (0)
- Copper weight
- 135 g
- Total weight
- 780 g
- Pin configuration
- 1-7 / 9-13 · 1-7 / 8-9 + 13-14
- Certifications
- EN 61558
- Part numbers
- 14 on this datasheet
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
Datasheet

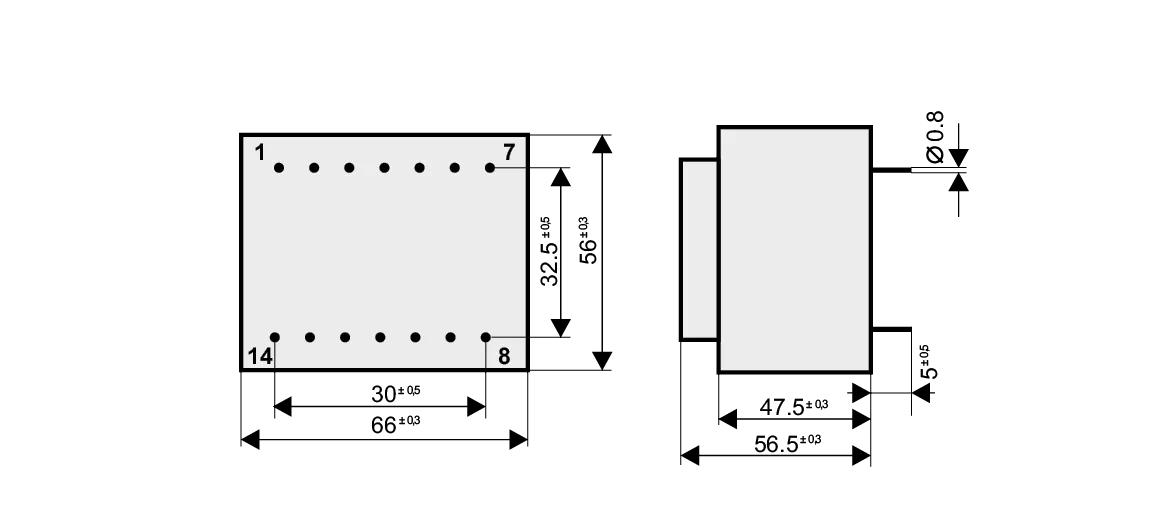

Factory datasheet for the 32VA-EI60-30.5 series — dimensions, winding table, and pin layout for every part number on this page. PDF, opens in a new tab.
32VA-EI60-30.5.pdf
Part numbers in this series
Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.
14 rows
| ASL182106Z | 6 V | 5,330 | 7.18 V | 1-7 / 9-13 |
|---|---|---|---|---|
| ASL182108Z | 7.5 V | 4,260 | 8.5 V | 1-7 / 9-13 |
| ASL182109Z | 9 V | 3,560 | 10.46 V | 1-7 / 9-13 |
| ASL182112Z | 12 V | 2,670 | 13.9 V | 1-7 / 9-13 |
| ASL182115Z | 15 V | 2,130 | 17.2 V | 1-7 / 9-13 |
| ASL182118Z | 18 V | 1,780 | 20.6 V | 1-7 / 9-13 |
| ASL182124Z | 24 V | 1,330 | 27.17 V | 1-7 / 9-13 |
| ASL182206Z | 2 × 6 V | 2,670 | 7.15 V | 1-7 / 8-9 + 13-14 |
| ASL182208Z | 2 × 7.5 V | 2,130 | 8.55 V | 1-7 / 8-9 + 13-14 |
| ASL182209Z | 2 × 9 V | 1,780 | 10.2 V | 1-7 / 8-9 + 13-14 |
| ASL182212Z | 2 × 12 V | 1,330 | 13.65 V | 1-7 / 8-9 + 13-14 |
| ASL182215Z | 2 × 15 V | 1,070 | 17.12 V | 1-7 / 8-9 + 13-14 |
| ASL182218Z | 2 × 18 V | 890 | 20.18 V | 1-7 / 8-9 + 13-14 |
| ASL182224Z | 2 × 24 V | 670 | 27.15 V | 1-7 / 8-9 + 13-14 |
Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
Next step
Need a winding this datasheet does not cover?
Every part on this page is wound to order, so a secondary voltage, a cover style, or a footprint outside the standard table is a quote, not a refusal.
