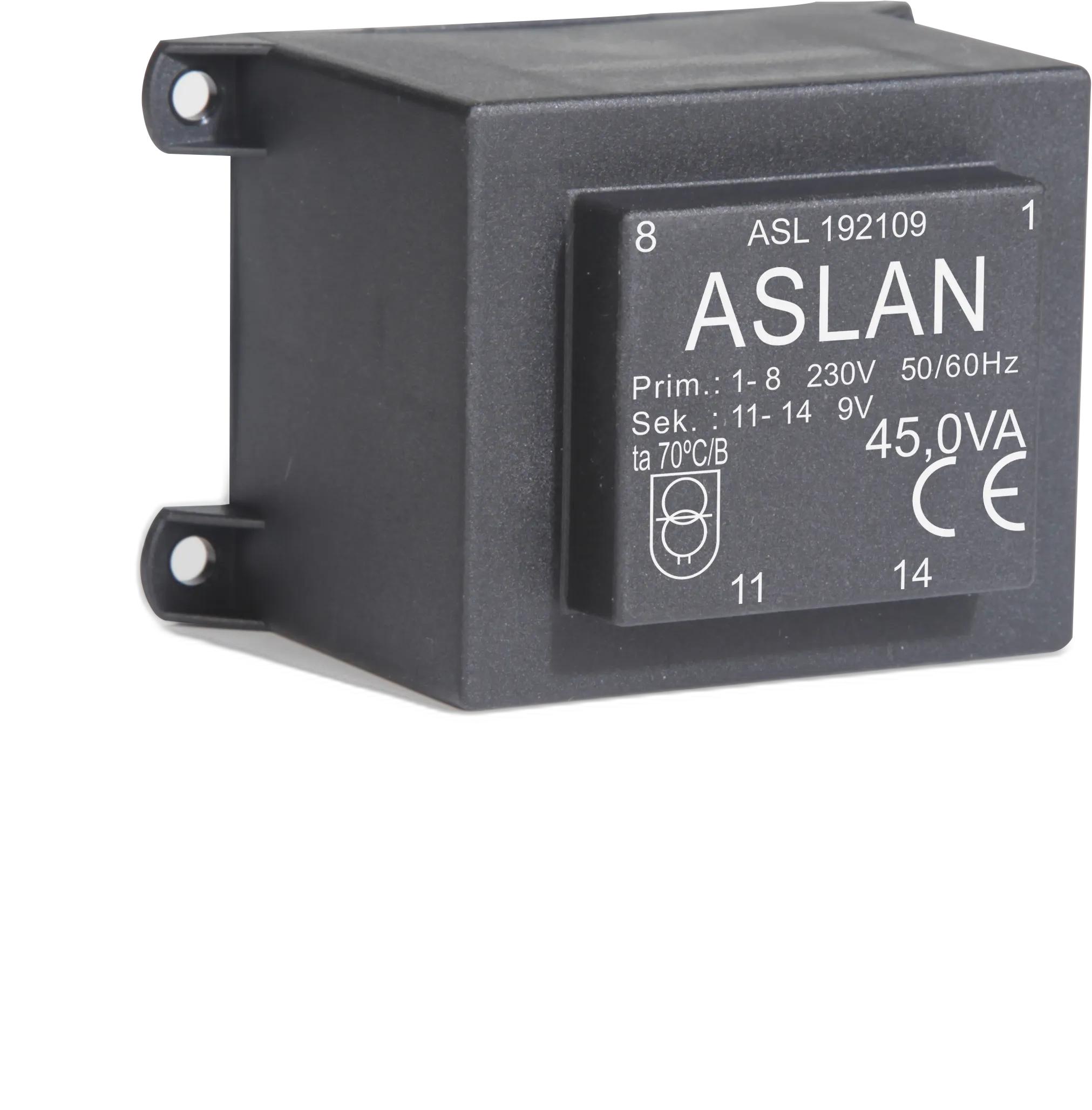

EI66 series
45VA-EI66-30-KK
45 VA · EI66 core · KK (cover + strain relief) · 230 V primary · 14 part numbers
Series specifications
- Core
- EI66
- Rated power
- 45 VA
- Primary
- 230 V (single winding)
- Secondary
- 6–24 V per winding · single or dual
- Pin spacing
- 35 mm
- Winding code
- 30
- Cover style
- KK (cover + strain relief)
- Copper weight
- 170 g
- Total weight
- 950 g
- Pin configuration
- 1-8 / 11-14 · 1-8 / 9-10 + 15-16
- Certifications
- EN 61558
- Part numbers
- 14 on this datasheet
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
Datasheet

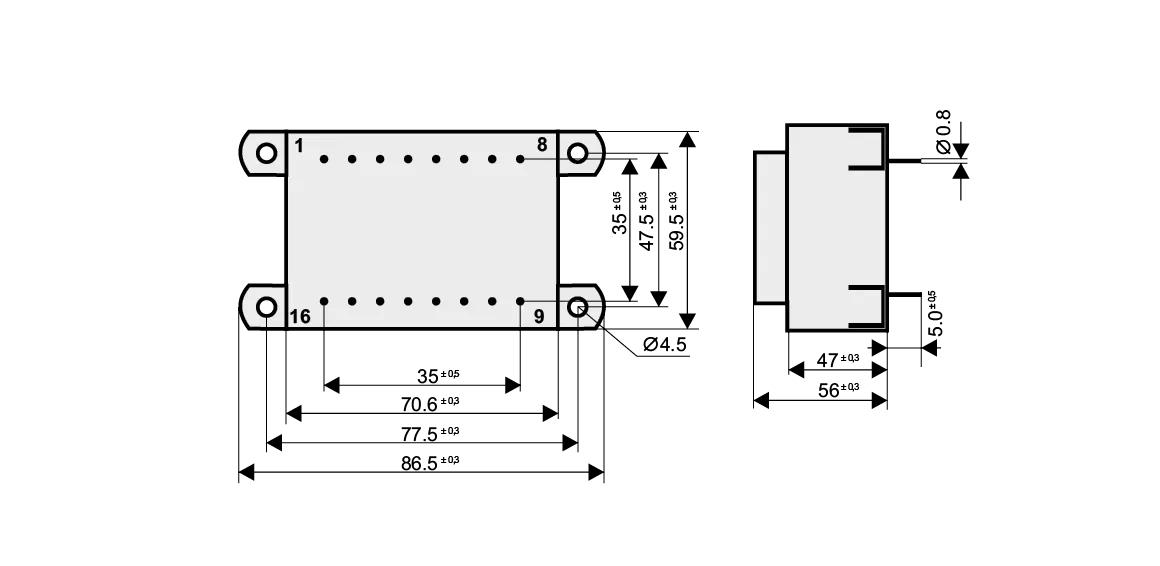

Factory datasheet for the 45VA-EI66-30-KK series — dimensions, winding table, and pin layout for every part number on this page. PDF, opens in a new tab.
45VA-EI66-30-KK.pdf
Part numbers in this series
Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.
14 rows
| ASL192106 | 6 V | 7,500 | 6.8 V | 1-8 / 11-14 |
|---|---|---|---|---|
| ASL192108 | 7.5 V | 6,000 | 8.7 V | 1-8 / 11-14 |
| ASL192109 | 9 V | 5,000 | 10.2 V | 1-8 / 11-14 |
| ASL192112 | 12 V | 3,750 | 13.9 V | 1-8 / 11-14 |
| ASL192115 | 15 V | 3,000 | 17.15 V | 1-8 / 11-14 |
| ASL192118 | 18 V | 2,500 | 20.45 V | 1-8 / 11-14 |
| ASL192124 | 24 V | 1,880 | 26.9 V | 1-8 / 11-14 |
| ASL192206 | 2 × 6 V | 3,750 | 6.8 V | 1-8 / 9-10 + 15-16 |
| ASL192208 | 2 × 7.5 V | 3,000 | 8.7 V | 1-8 / 9-10 + 15-16 |
| ASL192209 | 2 × 9 V | 2,500 | 10.51 V | 1-8 / 9-10 + 15-16 |
| ASL192212 | 2 × 12 V | 1,880 | 13.8 V | 1-8 / 9-10 + 15-16 |
| ASL192215 | 2 × 15 V | 1,500 | 17.15 V | 1-8 / 9-10 + 15-16 |
| ASL192218 | 2 × 18 V | 1,250 | 20.85 V | 1-8 / 9-10 + 15-16 |
| ASL192224 | 2 × 24 V | 940 | 27.25 V | 1-8 / 9-10 + 15-16 |
Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
Next step
Need a winding this datasheet does not cover?
Every part on this page is wound to order, so a secondary voltage, a cover style, or a footprint outside the standard table is a quote, not a refusal.
