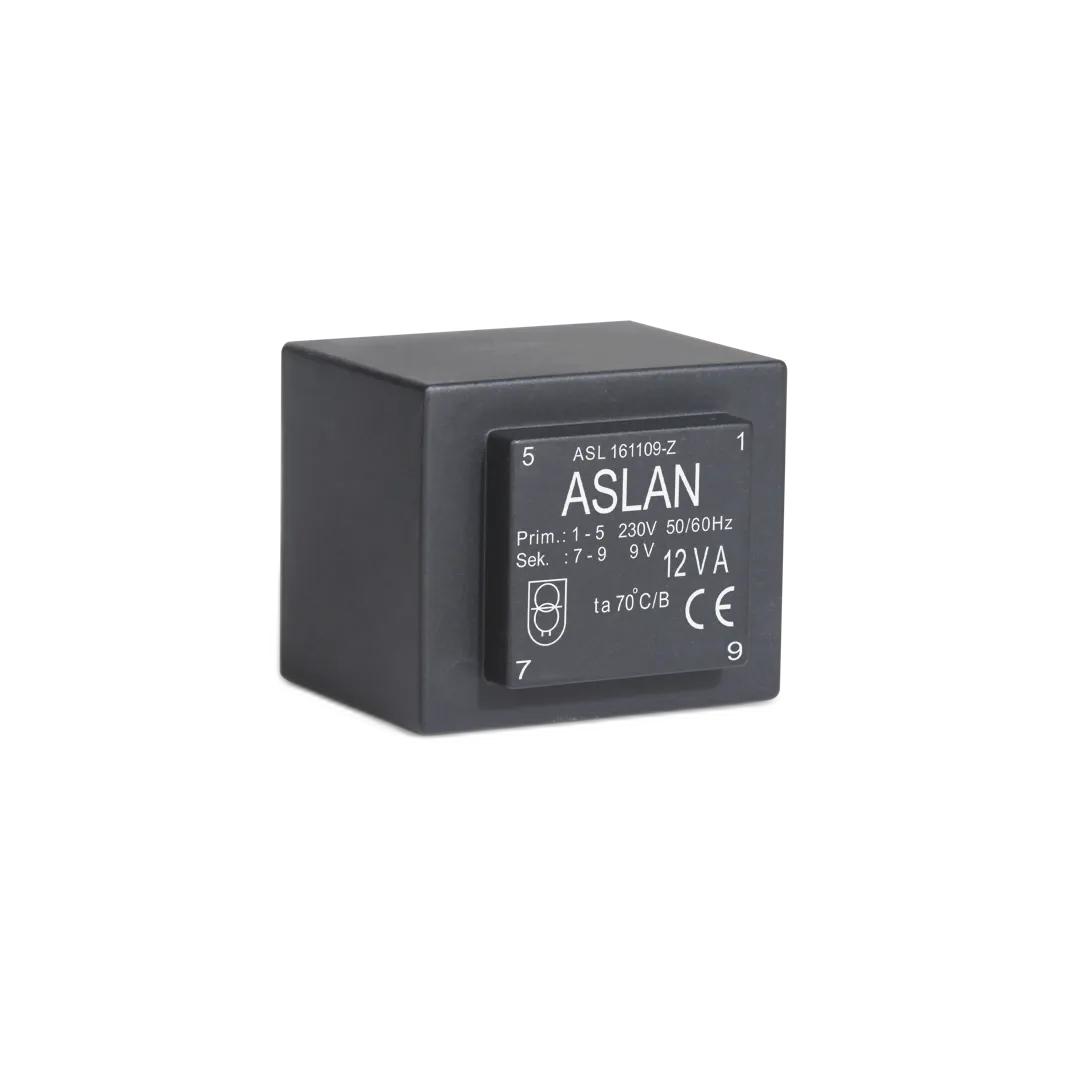

EI48 series
12VA-EI48-20.5
12 VA · EI48 core · Standard (0) · 230 V primary · 14 part numbers
Series specifications
- Core
- EI48
- Rated power
- 12 VA
- Primary
- 230 V (single winding)
- Secondary
- 6–24 V per winding · single or dual
- Pin spacing
- 27.5 mm
- Winding code
- 20.5
- Cover style
- Standard (0)
- Copper weight
- 60 g
- Total weight
- 300 g
- Pin configuration
- 1-6 / 8-11 · 1-6 / 7-8 + 11-12
- Certifications
- EN 61558
- Part numbers
- 14 on this datasheet
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
Datasheet

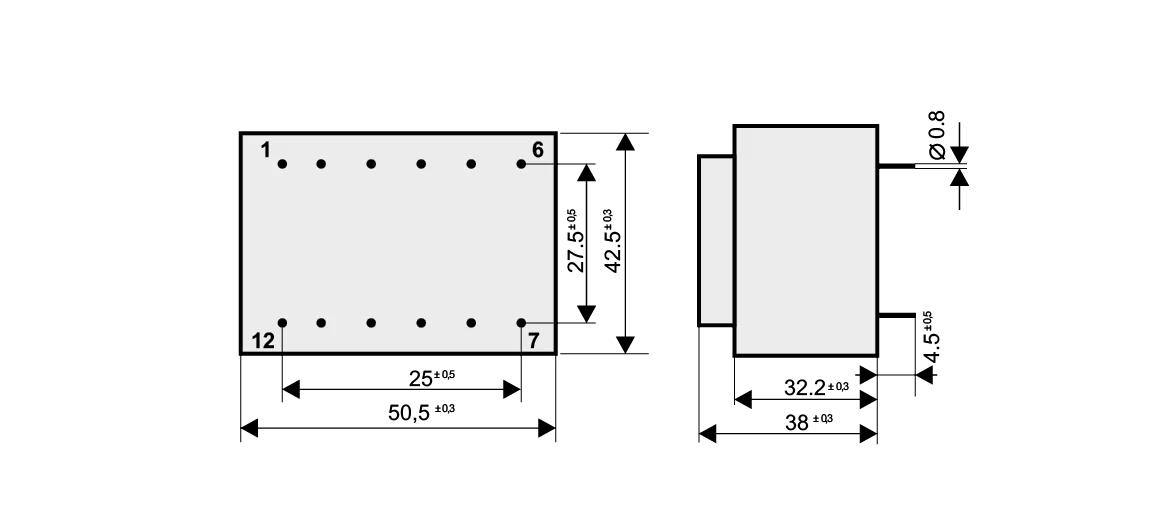

Factory datasheet for the 12VA-EI48-20.5 series — dimensions, winding table, and pin layout for every part number on this page. PDF, opens in a new tab.
12VA-EI48-20.5.pdf
Part numbers in this series
Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.
14 rows
| ASL161106Z | 6 V | 2,000 | 7.42 V | 1-6 / 8-11 |
|---|---|---|---|---|
| ASL161108Z | 7.5 V | 1,600 | 9.3 V | 1-6 / 8-11 |
| ASL161109Z | 9 V | 1,333 | 11.35 V | 1-6 / 8-11 |
| ASL161112Z | 12 V | 1,000 | 14.86 V | 1-6 / 8-11 |
| ASL161115Z | 15 V | 800 | 18.74 V | 1-6 / 8-11 |
| ASL161118Z | 18 V | 666 | 22.4 V | 1-6 / 8-11 |
| ASL161124Z | 24 V | 500 | 29.6 V | 1-6 / 8-11 |
| ASL161206Z | 2 × 6 V | 1,000 | 7.44 V | 1-6 / 7-8 + 11-12 |
| ASL161208Z | 2 × 7.5 V | 800 | 9.3 V | 1-6 / 7-8 + 11-12 |
| ASL161209Z | 2 × 9 V | 666 | 11.35 V | 1-6 / 7-8 + 11-12 |
| ASL161212Z | 2 × 12 V | 500 | 14.85 V | 1-6 / 7-8 + 11-12 |
| ASL161215Z | 2 × 15 V | 400 | 18.6 V | 1-6 / 7-8 + 11-12 |
| ASL161218Z | 2 × 18 V | 333 | 22.4 V | 1-6 / 7-8 + 11-12 |
| ASL161224Z | 2 × 24 V | 250 | 29.6 V | 1-6 / 7-8 + 11-12 |
Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
Next step
Need a winding this datasheet does not cover?
Every part on this page is wound to order, so a secondary voltage, a cover style, or a footprint outside the standard table is a quote, not a refusal.
