EI48 series
10VA-EI48-16.8
10 VA · EI48 core · Standard (0) · 230 V primary · 14 part numbers
Series specifications
- Core
- EI48
- Rated power
- 10 VA
- Primary
- 230 V (single winding)
- Secondary
- 6–24 V per winding · single or dual
- Pin spacing
- 27.5 mm
- Winding code
- 16.8
- Cover style
- Standard (0)
- Copper weight
- 50 g
- Total weight
- 275 g
- Pin configuration
- 1-6 / 8-11 · 1-6 / 7-8 + 11-12
- Certifications
- EN 61558
- Part numbers
- 14 on this datasheet
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
Datasheet

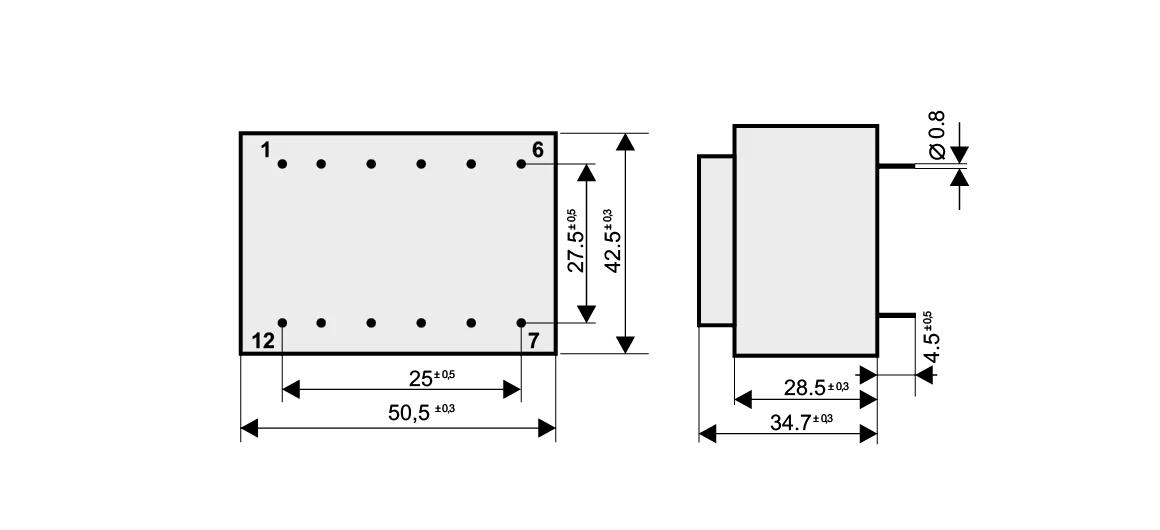

Factory datasheet for the 10VA-EI48-16.8 series — dimensions, winding table, and pin layout for every part number on this page. PDF, opens in a new tab.
10VA-EI48-16.8.pdf
Part numbers in this series
Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.
14 rows
| ASL160106Z | 6 V | 1,666 | 7.4 V | 1-6 / 8-11 |
|---|---|---|---|---|
| ASL160108Z | 7.5 V | 1,332 | 9.6 V | 1-6 / 8-11 |
| ASL160109Z | 9 V | 1,111 | 11.3 V | 1-6 / 8-11 |
| ASL160112Z | 12 V | 833 | 15.1 V | 1-6 / 8-11 |
| ASL160115Z | 15 V | 666 | 18.8 V | 1-6 / 8-11 |
| ASL160118Z | 18 V | 555 | 22.6 V | 1-6 / 8-11 |
| ASL160124Z | 24 V | 416 | 29.1 V | 1-6 / 8-11 |
| ASL160206Z | 2 × 6 V | 833 | 7.5 V | 1-6 / 7-8 + 11-12 |
| ASL160208Z | 2 × 7.5 V | 666 | 9.6 V | 1-6 / 7-8 + 11-12 |
| ASL160209Z | 2 × 9 V | 555 | 11.3 V | 1-6 / 7-8 + 11-12 |
| ASL160212Z | 2 × 12 V | 416 | 15 V | 1-6 / 7-8 + 11-12 |
| ASL160215Z | 2 × 15 V | 333 | 18.9 V | 1-6 / 7-8 + 11-12 |
| ASL160218Z | 2 × 18 V | 277 | 22.5 V | 1-6 / 7-8 + 11-12 |
| ASL160224Z | 2 × 24 V | 208 | 29 V | 1-6 / 7-8 + 11-12 |
Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
