Low-Profile Transformers
ASL671412
50 VA · UI48 · 2 × 115 V primary · 2 × 12 V secondary at 2 × 1,875 mA
ASL671412 is discontinued and cannot be ordered
The 50VA-UI48-17 series has been withdrawn from Aslan Elektronik's current catalog. This page and its datasheet stay published for anyone maintaining a design that already uses this part.
Nothing in the current range reaches 50 VA at 2 × 12 V, so there is no catalog part to point you at. Send us the specification and we will quote the same transformer as a custom wind — that is how the factory builds everything anyway.
Specifications
- Part number
- ASL671412
- Availability
- Discontinued
- Rated power
- 50 VA
- Primary voltage
- 2 × 115 V
- Secondary voltage
- 2 × 12 V
- Secondary current
- 2 × 1,875 mA
- No-load voltage
- 13.1 V
- Core
- UI48
- Cover style
- Standard (0)

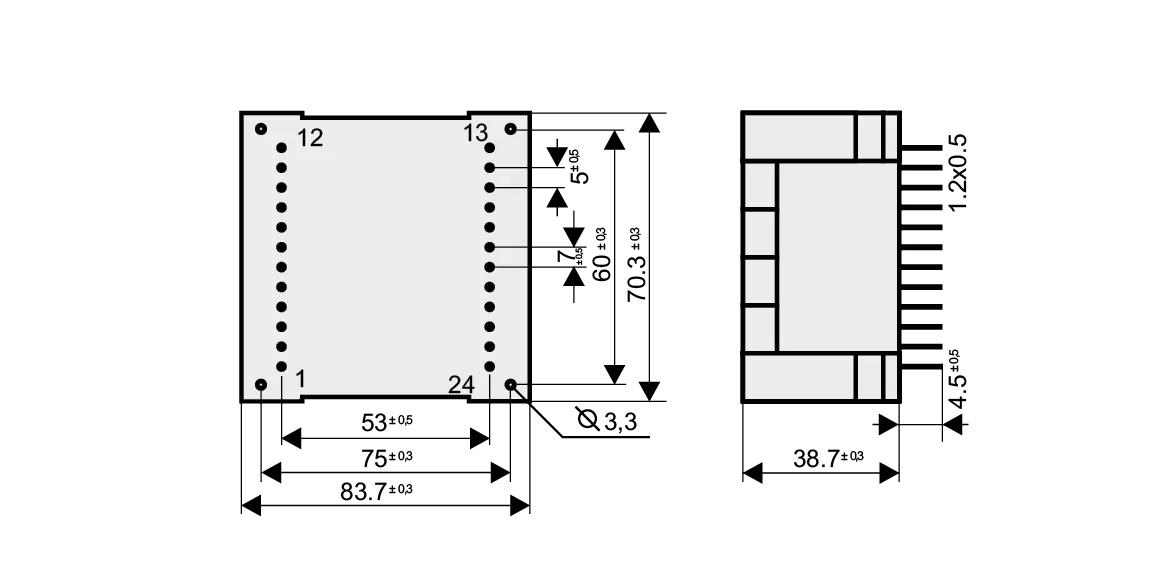

- Pin configuration
- 1-4 + 9-12 / 14-17 + 20-23
- Mounting
- PCB through-hole
- Copper weight
- 170 g
- Total weight
- 800 g
- Certifications
- EN 61558
- Series
- 50VA-UI48-17
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
How this part is supplied
Aslan Elektronik builds to order and ships direct from the factory. S&B Tech is its exclusive North American representative, not a stocking distributor, so pricing comes back with the quote at your volume. Lead time is two weeks.
A secondary voltage, cover style, or footprint outside this table is a custom wind, which is normal business here rather than an exception.
Both arrive with ASL671412 attached. We reply within 48 hours.
Datasheet
Archive copyFactory datasheet for the withdrawn 50VA-UI48-17 series, kept here for anyone maintaining a design that already uses one. PDF, opens in a new tab.
50VA-UI48-17.pdf
Other secondaries on this datasheet
Same UI48 core, same 50 VA rating, same footprint — only the secondary winding changes.
Next step
Replacing ASL671412
Each route below arrives with this part number and Low-Profile Transformers already attached.
Quote or custom wind
Pricing at your volume for this part, or the same transformer with a different secondary, cover, or footprint.
Request a quoteCross-reference
Replacing a Hammond, Triad, Signal, Tamura, Pulse, or Delevan part? Send the part number and we confirm the fit.
Cross-reference a partSamples
This part is discontinued, so samples start from the custom-wind route above.
Start a custom build
