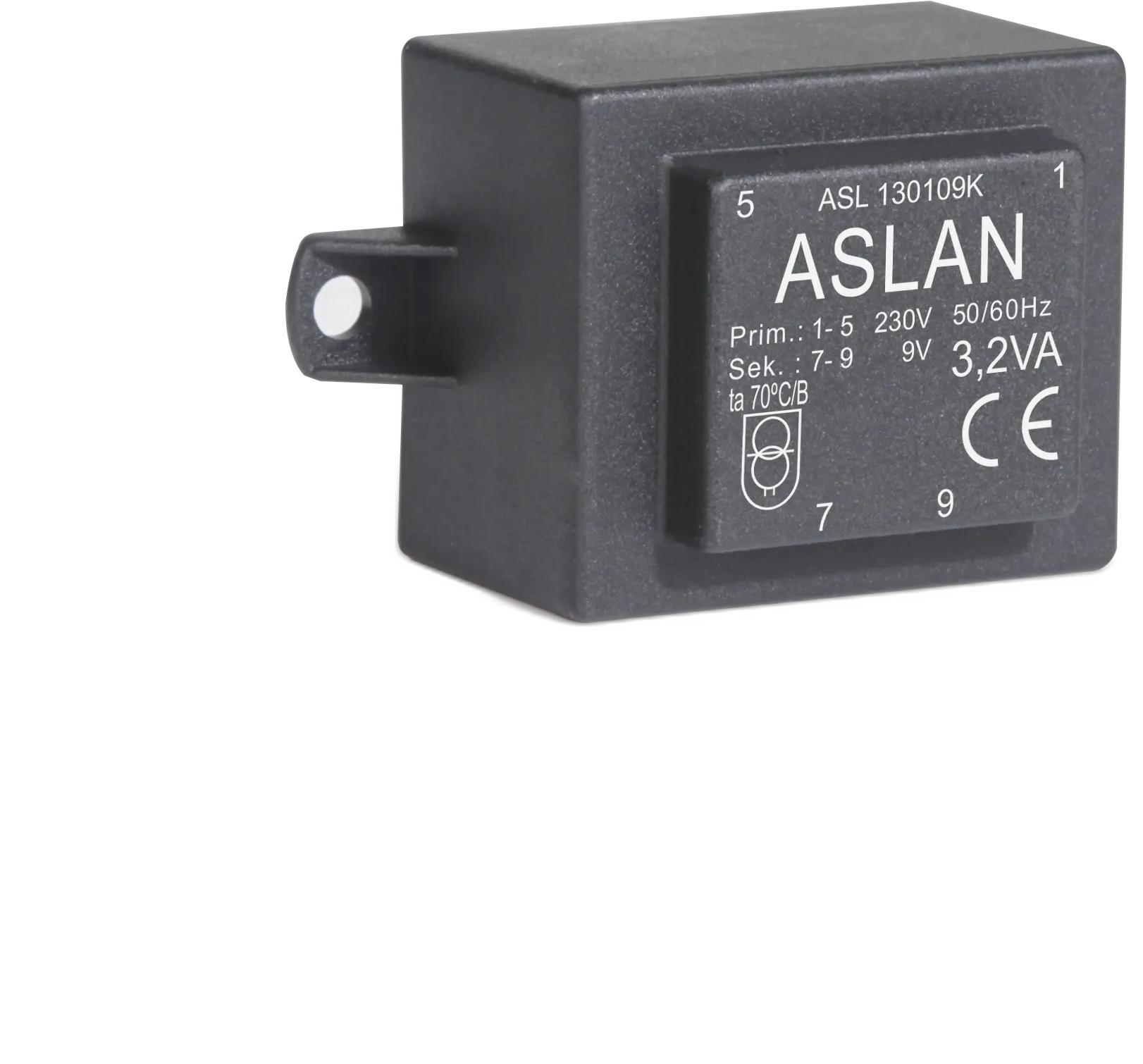

EI38 series
3.2VA-EI38-13.6-K
3.2 VA · EI38 core · K (cover) · 230 V primary · 14 part numbers
Series specifications
- Core
- EI38
- Rated power
- 3.2 VA
- Primary
- 230 V (single winding)
- Secondary
- 6–24 V per winding · single or dual
- Pin spacing
- 25 mm
- Winding code
- 13.6
- Cover style
- K (cover)
- Copper weight
- 25 g
- Total weight
- 150 g
- Pin configuration
- 1-5 / 7-9 · 1-5 / 6-7 + 9-10
- Certifications
- EN 61558
- Part numbers
- 14 on this datasheet
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
Datasheet

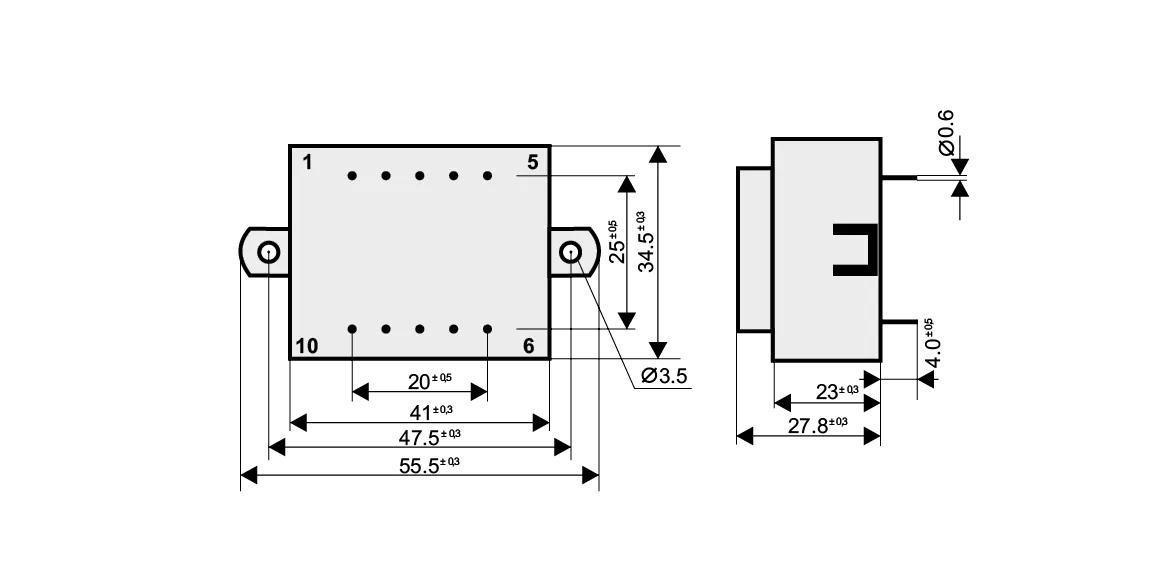

Factory datasheet for the 3.2VA-EI38-13.6-K series — dimensions, winding table, and pin layout for every part number on this page. PDF, opens in a new tab.
3.2VA-EI38-13.6-K.pdf
Part numbers in this series
Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.
14 rows
| ASL130106K | 6 V | 533 | 7.7 V | 1-5 / 7-9 |
|---|---|---|---|---|
| ASL130108K | 7.5 V | 427 | 9.7 V | 1-5 / 7-9 |
| ASL130109K | 9 V | 355 | 11.6 V | 1-5 / 7-9 |
| ASL130112K | 12 V | 266 | 15.3 V | 1-5 / 7-9 |
| ASL130115K | 15 V | 213 | 19.3 V | 1-5 / 7-9 |
| ASL130118K | 18 V | 177 | 23.2 V | 1-5 / 7-9 |
| ASL130124K | 24 V | 133 | 31.2 V | 1-5 / 7-9 |
| ASL130206K | 2 × 6 V | 266 | 7.6 V | 1-5 / 6-7 + 9-10 |
| ASL130208K | 2 × 7.5 V | 213 | 9.4 V | 1-5 / 6-7 + 9-10 |
| ASL130209K | 2 × 9 V | 177 | 11.4 V | 1-5 / 6-7 + 9-10 |
| ASL130212K | 2 × 12 V | 133 | 15.4 V | 1-5 / 6-7 + 9-10 |
| ASL130215K | 2 × 15 V | 106 | 19.3 V | 1-5 / 6-7 + 9-10 |
| ASL130218K | 2 × 18 V | 88 | 22.9 V | 1-5 / 6-7 + 9-10 |
| ASL130224K | 2 × 24 V | 66 | 30.4 V | 1-5 / 6-7 + 9-10 |
Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
