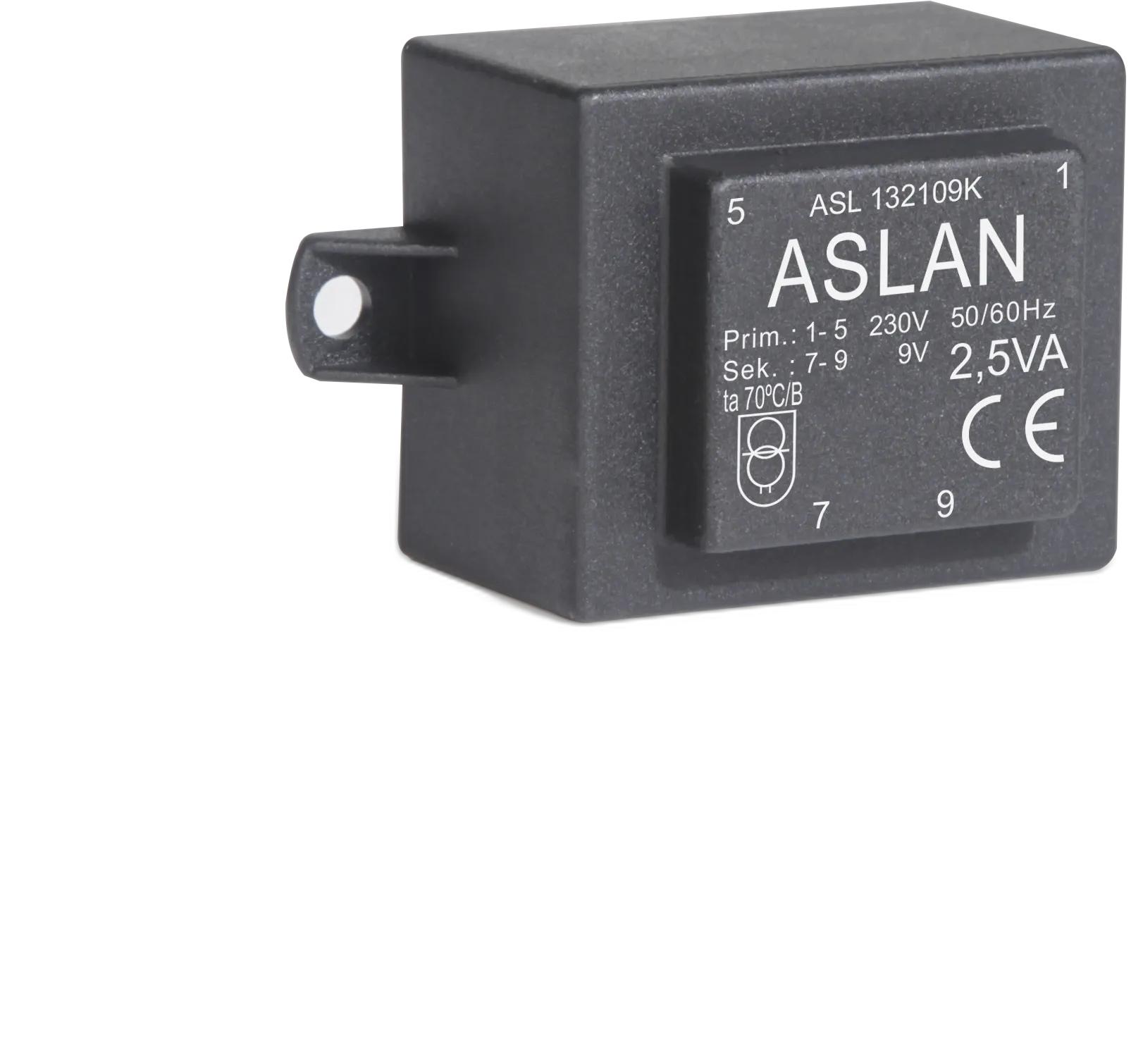

EI38 series
2.5VA-EI38-7.5-K
2.5 VA · EI38 core · K (cover) · 230 V primary · 14 part numbers
Series specifications
- Core
- EI38
- Rated power
- 2.5 VA
- Primary
- 230 V (single winding)
- Secondary
- 6–24 V per winding · single or dual
- Pin spacing
- 25 mm
- Winding code
- 7.5
- Cover style
- K (cover)
- Copper weight
- 20 g
- Total weight
- 101 g
- Pin configuration
- 1-5 / 7-9 · 1-5 / 6-7 + 9-10
- Certifications
- EN 61558
- Part numbers
- 14 on this datasheet
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
Datasheet

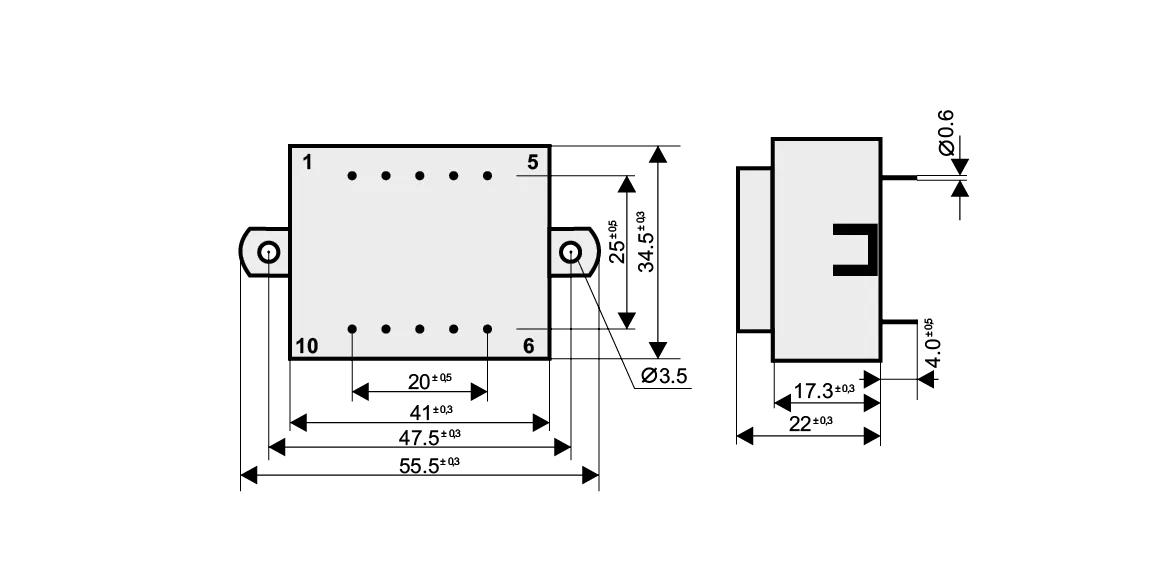

Factory datasheet for the 2.5VA-EI38-7.5-K series — dimensions, winding table, and pin layout for every part number on this page. PDF, opens in a new tab.
2.5VA-EI38-7.5-K.pdf
Part numbers in this series
Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.
14 rows
| ASL132106K | 6 V | 417 | 10.3 V | 1-5 / 7-9 |
|---|---|---|---|---|
| ASL132108K | 7.5 V | 333 | 13 V | 1-5 / 7-9 |
| ASL132109K | 9 V | 278 | 15.4 V | 1-5 / 7-9 |
| ASL132112K | 12 V | 208 | 20 V | 1-5 / 7-9 |
| ASL132115K | 15 V | 167 | 24.8 V | 1-5 / 7-9 |
| ASL132118K | 18 V | 139 | 29.9 V | 1-5 / 7-9 |
| ASL132124K | 24 V | 104 | 39.1 V | 1-5 / 7-9 |
| ASL132206K | 2 × 6 V | 208 | 10.3 V | 1-5 / 6-7 + 9-10 |
| ASL132208K | 2 × 7.5 V | 166 | 13 V | 1-5 / 6-7 + 9-10 |
| ASL132209K | 2 × 9 V | 139 | 15.6 V | 1-5 / 6-7 + 9-10 |
| ASL132212K | 2 × 12 V | 104 | 20.5 V | 1-5 / 6-7 + 9-10 |
| ASL132215K | 2 × 15 V | 83 | 24.8 V | 1-5 / 6-7 + 9-10 |
| ASL132218K | 2 × 18 V | 69 | 29.8 V | 1-5 / 6-7 + 9-10 |
| ASL132224K | 2 × 24 V | 52 | 39.1 V | 1-5 / 6-7 + 9-10 |
Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
Next step
Need a winding this datasheet does not cover?
Every part on this page is wound to order, so a secondary voltage, a cover style, or a footprint outside the standard table is a quote, not a refusal.
