EI96 series

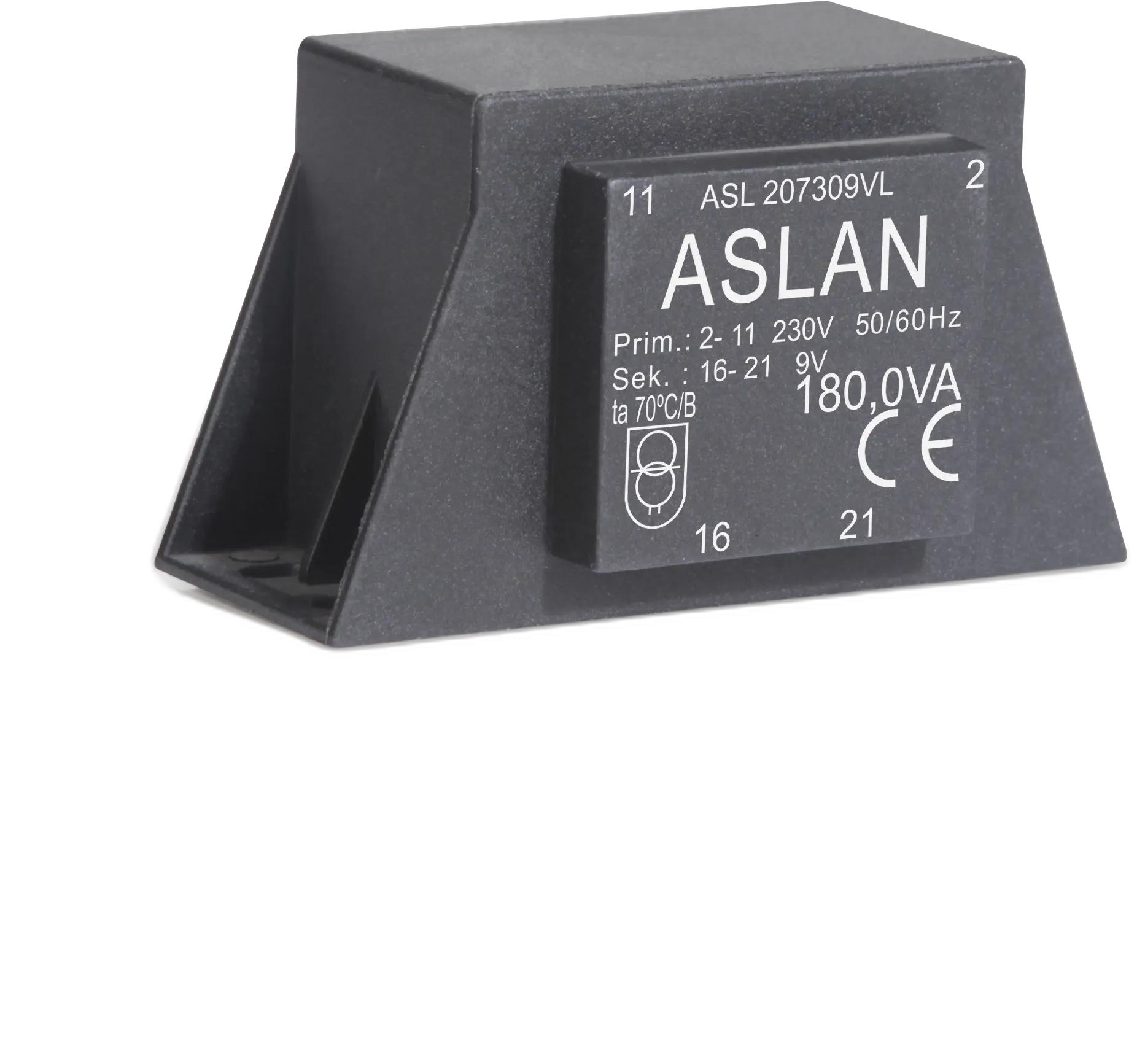

180VA-EI96-45.7-VL
180 VA · EI96 core · VL (flying leads) · 230 V primary · 14 part numbers
This series has been withdrawn from the current catalog

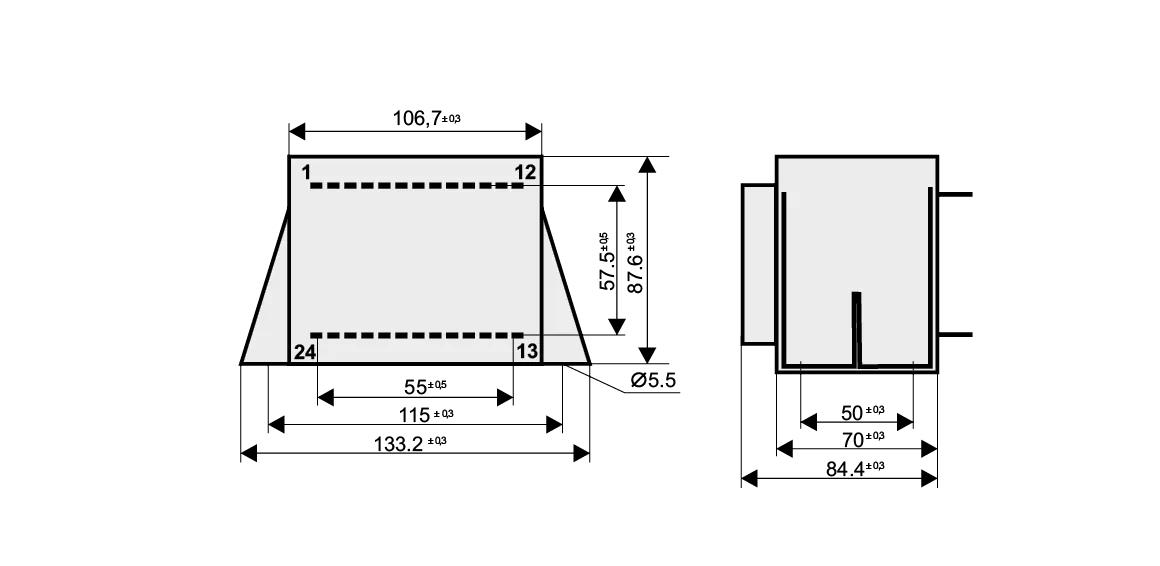

The 180VA-EI96-45.7-VL datasheet is no longer part of pcb mount transformers production and these part numbers cannot be ordered. The page and the drawing stay published for anyone maintaining a design that already uses one — open a part number below to see the active parts it can be requoted against.
Send the specification and we will quote the same wind as a custom build.
Series specifications
- Core
- EI96
- Rated power
- 180 VA
- Primary
- 230 V (single winding)
- Secondary
- 6–24 V per winding · single or dual
- Pin spacing
- 57.5 mm
- Winding code
- 45.7
- Cover style
- VL (flying leads)
- Copper weight
- 530 g
- Total weight
- 3,020 g
- Pin configuration
- 2-11 / 16-21 · 2-11 / 14-17 + 20-23
- Certifications
- EN 61558
- Part numbers
- 14 on this datasheet
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
Datasheet
Archive copyFactory datasheet for the withdrawn 180VA-EI96-45.7-VL series, kept here for anyone maintaining a design that already uses one. PDF, opens in a new tab.
180VA-EI96-45.7-VL.pdf
Part numbers in this series
Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.
14 rows
| ASL207306VL | 6 V | 30,000 | 6.5 V | 2-11 / 16-21 |
|---|---|---|---|---|
| ASL207308VL | 7.5 V | 24,000 | 8.2 V | 2-11 / 16-21 |
| ASL207309VL | 9 V | 20,000 | 9.6 V | 2-11 / 16-21 |
| ASL207312VL | 12 V | 15,000 | 12.9 V | 2-11 / 16-21 |
| ASL207315VL | 15 V | 12,000 | 15.9 V | 2-11 / 16-21 |
| ASL207318VL | 18 V | 10,000 | 19.2 V | 2-11 / 16-21 |
| ASL207324VL | 24 V | 7,500 | 25.9 V | 2-11 / 16-21 |
| ASL207406VL | 2 × 6 V | 30,000 | 6.5 V | 2-11 / 14-17 + 20-23 |
| ASL207408VL | 2 × 7.5 V | 12,000 | 8.2 V | 2-11 / 14-17 + 20-23 |
| ASL207409VL | 2 × 9 V | 10,000 | 9.6 V | 2-11 / 14-17 + 20-23 |
| ASL207412VL | 2 × 12 V | 7,500 | 13 V | 2-11 / 14-17 + 20-23 |
| ASL207415VL | 2 × 15 V | 6,000 | 15.95 V | 2-11 / 14-17 + 20-23 |
| ASL207418VL | 2 × 18 V | 5,000 | 19.2 V | 2-11 / 14-17 + 20-23 |
| ASL207424VL | 2 × 24 V | 3,750 | 25.9 V | 2-11 / 14-17 + 20-23 |
Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
Next step
Still using this series?
The wind still exists as a specification even though the part number has gone. Send it over and we will price the same transformer as a custom build.
