EI96 series

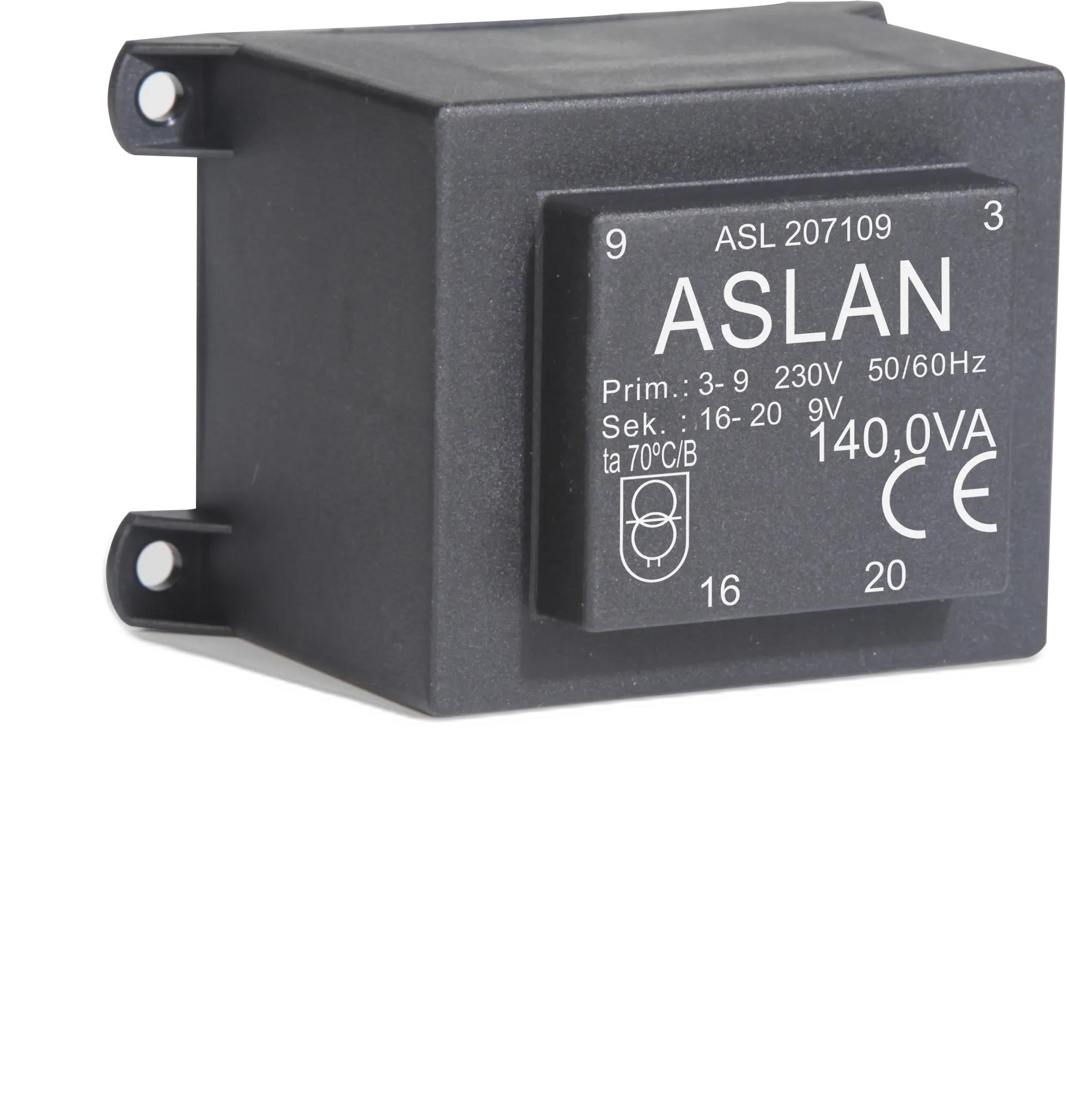

140VA-EI96-35.7-KK
140 VA · EI96 core · KK (cover + strain relief) · 230 V primary · 14 part numbers
This series has been withdrawn from the current catalog
The 140VA-EI96-35.7-KK datasheet is no longer part of pcb mount transformers production and these part numbers cannot be ordered. The page and the drawing stay published for anyone maintaining a design that already uses one — open a part number below to see the active parts it can be requoted against.
Send the specification and we will quote the same wind as a custom build.
Series specifications
- Core
- EI96
- Rated power
- 140 VA
- Primary
- 230 V (single winding)
- Secondary
- 6–24 V per winding · single or dual

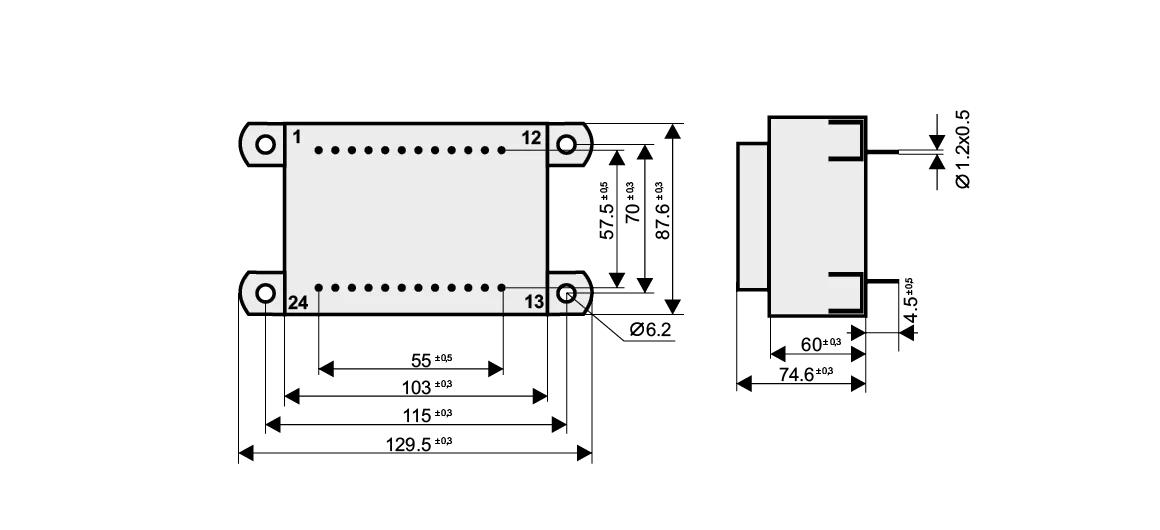

- Pin spacing
- 57.5 mm
- Winding code
- 35.7
- Cover style
- KK (cover + strain relief)
- Copper weight
- 480 g
- Total weight
- 2,450 g
- Pin configuration
- 3-9 / 16-20 · 3-9 / 14-17 + 20-23
- Certifications
- EN 61558
- Part numbers
- 14 on this datasheet
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
Datasheet
Archive copyFactory datasheet for the withdrawn 140VA-EI96-35.7-KK series, kept here for anyone maintaining a design that already uses one. PDF, opens in a new tab.
140VA-EI96-35.7-KK.pdf
Part numbers in this series
Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.
14 rows
| ASL207106 | 6 V | 23,330 | 6.5 V | 3-9 / 16-20 |
|---|---|---|---|---|
| ASL207108 | 7.5 V | 18,660 | 8.2 V | 3-9 / 16-20 |
| ASL207109 | 9 V | 15,560 | 9.8 V | 3-9 / 16-20 |
| ASL207112 | 12 V | 16,670 | 13.05 V | 3-9 / 16-20 |
| ASL207115 | 15 V | 9,330 | 16.1 V | 3-9 / 16-20 |
| ASL207118 | 18 V | 7,780 | 19.45 V | 3-9 / 16-20 |
| ASL207124 | 24 V | 5,830 | 25.9 V | 3-9 / 16-20 |
| ASL207206 | 2 × 6 V | 16,670 | 6.5 V | 3-9 / 14-17 + 20-23 |
| ASL207208 | 2 × 7.5 V | 9,300 | 8.2 V | 3-9 / 14-17 + 20-23 |
| ASL207209 | 2 × 9 V | 7,780 | 9.75 V | 3-9 / 14-17 + 20-23 |
| ASL207212 | 2 × 12 V | 5,830 | 13.1 V | 3-9 / 14-17 + 20-23 |
| ASL207215 | 2 × 15 V | 4,670 | 16.2 V | 3-9 / 14-17 + 20-23 |
| ASL207218 | 2 × 18 V | 3,890 | 19.5 V | 3-9 / 14-17 + 20-23 |
| ASL207224 | 2 × 24 V | 2,910 | 25.9 V | 3-9 / 14-17 + 20-23 |
Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
Next step
Still using this series?
The wind still exists as a specification even though the part number has gone. Send it over and we will price the same transformer as a custom build.
