Low-Profile Transformers
ASL672412
65 VA · UI48 · 2 × 115 V primary · 2 × 12 V secondary at 2 × 2,708 mA
ASL672412 is discontinued and cannot be ordered
The 65VA-UI48-26 series has been withdrawn from Aslan Elektronik's current catalog. This page and its datasheet stay published for anyone maintaining a design that already uses this part.
Nothing in the current range reaches 65 VA at 2 × 12 V, so there is no catalog part to point you at. Send us the specification and we will quote the same transformer as a custom wind — that is how the factory builds everything anyway.
Specifications
- Part number
- ASL672412
- Availability
- Discontinued
- Rated power
- 65 VA
- Primary voltage
- 2 × 115 V
- Secondary voltage
- 2 × 12 V
- Secondary current
- 2 × 2,708 mA
- No-load voltage
- 13 V
- Core
- UI48
- Cover style
- Standard (0)
- Pin configuration
- 1-4 + 9-12 / 14-17 + 20-23
- Mounting
- PCB through-hole
- Copper weight
- 190 g
- Total weight
- 1,100 g
- Certifications
- EN 61558
- Series
- 65VA-UI48-26
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
How this part is supplied
Aslan Elektronik builds to order and ships direct from the factory. S&B Tech is its exclusive North American representative, not a stocking distributor, so pricing comes back with the quote at your volume. Lead time is two weeks.
A secondary voltage, cover style, or footprint outside this table is a custom wind, which is normal business here rather than an exception.
Both arrive with ASL672412 attached. We reply within 48 hours.

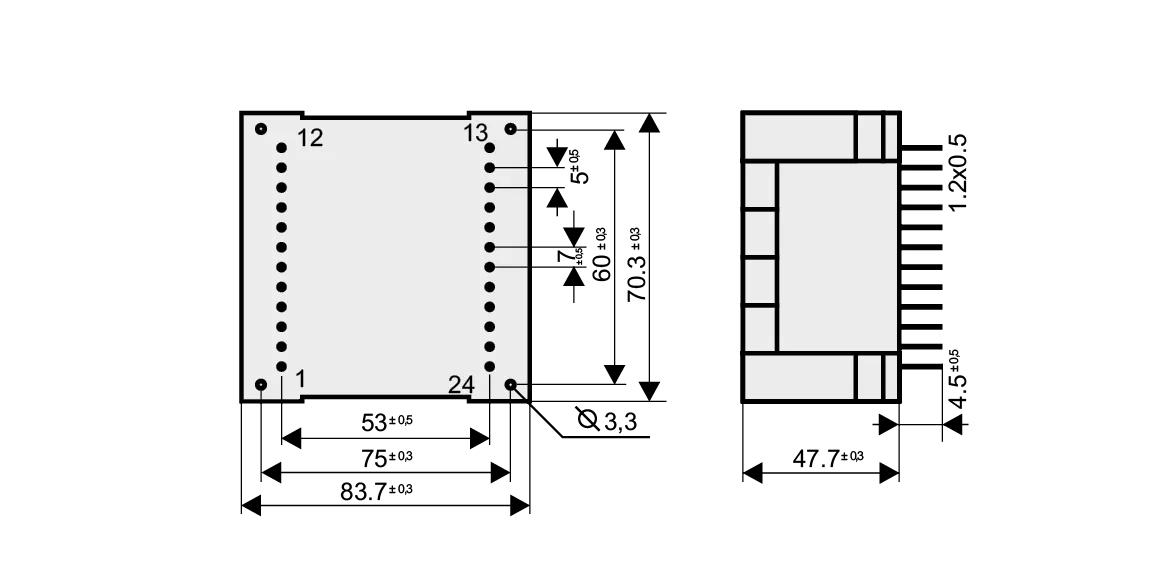

Datasheet
Archive copyFactory datasheet for the withdrawn 65VA-UI48-26 series, kept here for anyone maintaining a design that already uses one. PDF, opens in a new tab.
65VA-UI48-26.pdf
Other secondaries on this datasheet
Same UI48 core, same 65 VA rating, same footprint — only the secondary winding changes.
