Low-Profile Transformers
ASL651215
14 VA · UI39 · 2 × 115 V primary · 2 × 15 V secondary at 2 × 466 mA
Specifications
- Part number
- ASL651215
- Availability
- Current catalog
- Rated power
- 14 VA
- Primary voltage
- 2 × 115 V
- Secondary voltage
- 2 × 15 V
- Secondary current
- 2 × 466 mA
- No-load voltage
- 17.8 V
- Core
- UI39
- Cover style
- Standard (0)
- Pin configuration
- 1-4 + 7-10 / 11-13 + 18-20
- Mounting
- PCB through-hole
- Copper weight
- 130 g
- Total weight
- 320 g
- Certifications
- EN 61558
- Series
- 14VA-UI39-10.2
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
How this part is supplied
Aslan Elektronik builds to order and ships direct from the factory. S&B Tech is its exclusive North American representative, not a stocking distributor, so pricing comes back with the quote at your volume. Lead time is two weeks.
A secondary voltage, cover style, or footprint outside this table is a custom wind, which is normal business here rather than an exception.
Both arrive with ASL651215 attached. We reply within 48 hours.
Datasheet

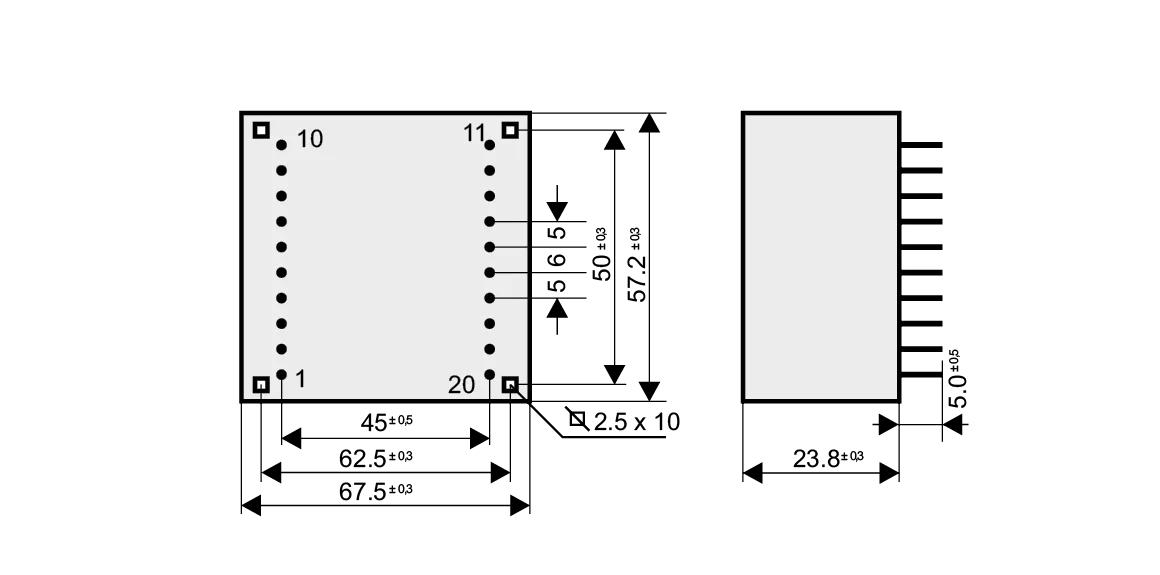

Factory datasheet for the 14VA-UI39-10.2 series — dimensions, winding table, and pin layout for every part number on this page. PDF, opens in a new tab.
14VA-UI39-10.2.pdf
Parts this replaces
Catalog parts ASL651215 matches on winding topology, secondary voltage, current, and VA rating.
Obsolete parts ASL651215 can replace
2 parts no longer listed by DigiKey. If one of these is on your bill of materials, this is the winding that takes its place — built to order, so the quantity you need is the quantity we run.
| Part number | Manufacturer | Match |
|---|---|---|
| BV030-7082.0 | Pulse Electronics | Grade B |
| BV048-5219.0 | Pulse Electronics | Grade B |
Currently listed parts with the same electricals
3 parts still in the DigiKey catalog that ASL651215 matches on winding topology, voltage, and rating.
| Part number | Manufacturer | Match |
|---|---|---|
| FP30-400 | Triad Magnetics | Grade A |
| FP30-400-B | Triad Magnetics | Grade A |
| F-3153XP | Triad Magnetics | Grade B |
How to read this table
- Grade A:
- Same winding topology, secondary voltage within 2%, and rated at or just above the part it replaces.
- Grade B:
- Meets the electrical specification but is oversized on current or VA, or splits the primary differently (single 230 V against dual 115 V).
Every match here is electrical. Pin spacing and body size were not compared, so check the footprint against the datasheet above before you commit to a substitution. Send us the incumbent part number and we will confirm the mechanical fit with the quote.
Other secondaries on this datasheet
Same UI39 core, same 14 VA rating, same footprint — only the secondary winding changes.
