Low-Profile Transformers
ASL621208
4 VA · UI30 · 2 × 115 V primary · 2 × 7.5 V secondary at 2 × 266 mA
Specifications
- Part number
- ASL621208
- Availability
- Current catalog
- Rated power
- 4 VA
- Primary voltage
- 2 × 115 V
- Secondary voltage
- 2 × 7.5 V
- Secondary current
- 2 × 266 mA
- No-load voltage
- 11.4 V
- Core
- UI30
- Cover style
- Standard (0)
- Pin configuration
- 1-3 + 6-8 / 9-10 + 15-16
- Mounting
- PCB through-hole
- Copper weight
- 50 g
- Total weight
- 150 g
- Certifications
- EN 61558
- Series
- 4VA-UI30-7.5
Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.
How this part is supplied
Aslan Elektronik builds to order and ships direct from the factory. S&B Tech is its exclusive North American representative, not a stocking distributor, so pricing comes back with the quote at your volume. Lead time is two weeks.
A secondary voltage, cover style, or footprint outside this table is a custom wind, which is normal business here rather than an exception.
Both arrive with ASL621208 attached. We reply within 48 hours.
Datasheet

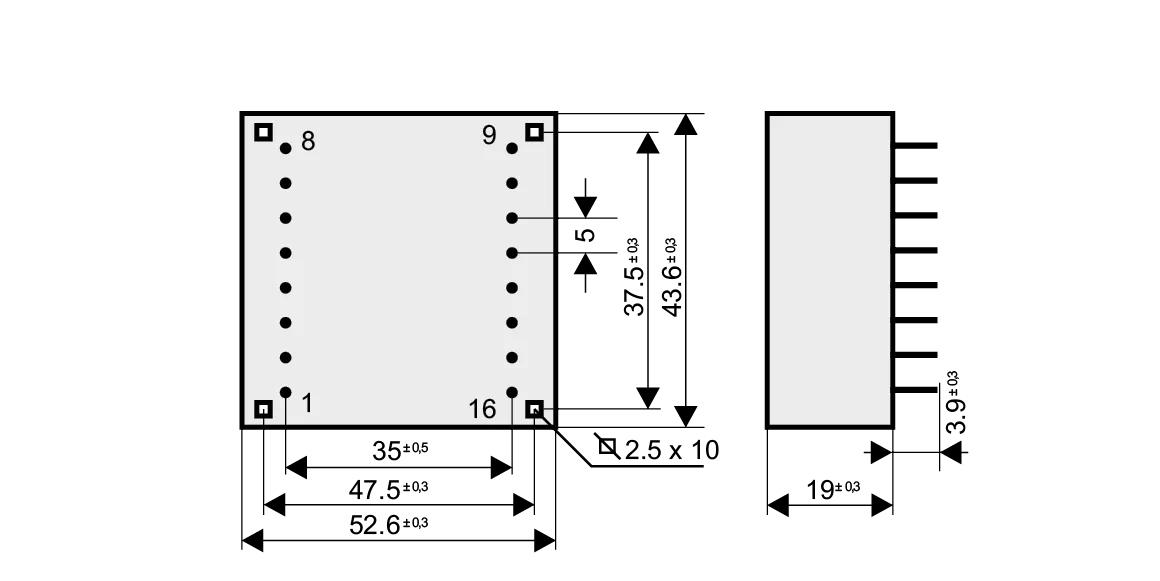

Factory datasheet for the 4VA-UI30-7.5 series — dimensions, winding table, and pin layout for every part number on this page. PDF, opens in a new tab.
4VA-UI30-7.5.pdf
Other secondaries on this datasheet
Same UI30 core, same 4 VA rating, same footprint — only the secondary winding changes.
