EI78 series

80VA-EI78-40.5-KK

80 VA · EI78 core · KK (cover + strain relief) · 230 V primary · 14 part numbers

DiscontinuedDatasheet (PDF)Request a quote

This series has been withdrawn from the current catalog

The 80VA-EI78-40.5-KK datasheet is no longer part of pcb mount transformers production and these part numbers cannot be ordered. The page and the drawing stay published for anyone maintaining a design that already uses one — open a part number below to see the active parts it can be requoted against.

Send the specification and we will quote the same wind as a custom build.

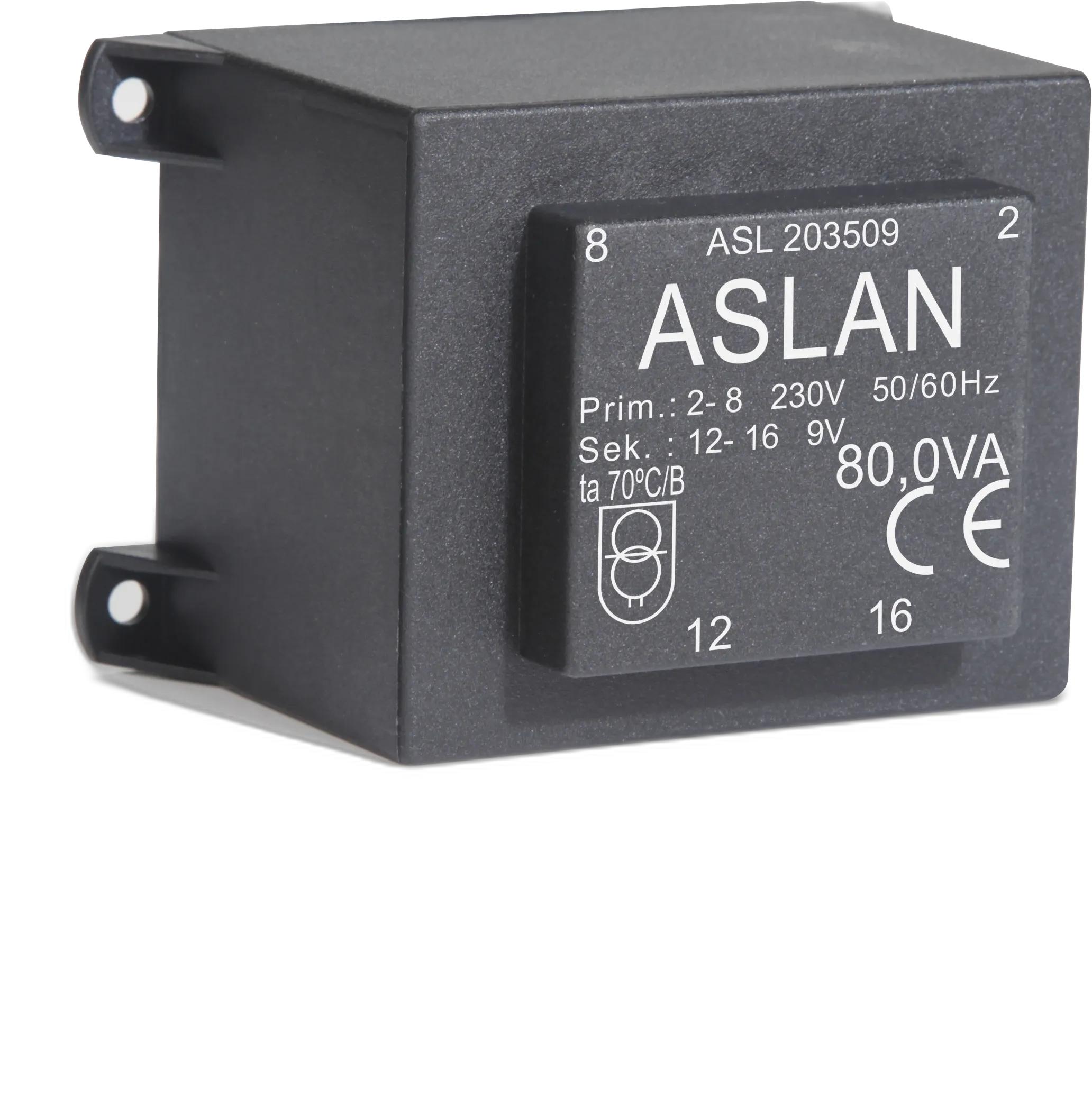

Photograph of an Aslan 80VA-EI78-40.5-KK EI78 transformer — 80VA-EI78-40.5-KK as supplied — KK (cover + strain relief). The winding printed on the label is one of the part numbers listed below.

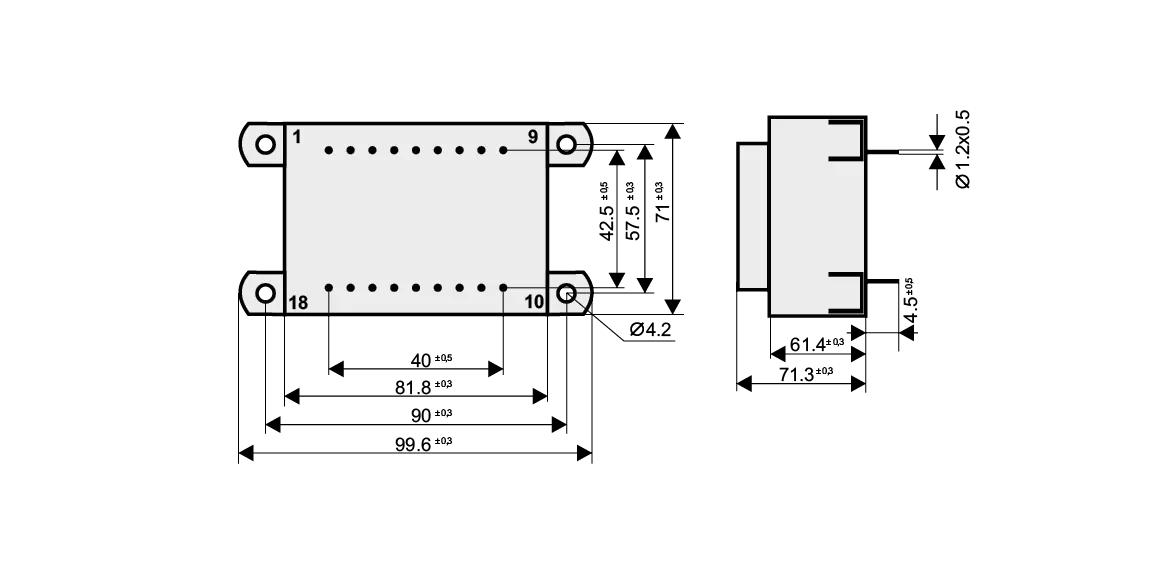

Dimensioned drawing of the 80VA-EI78-40.5-KK transformer: outline, mounting height, and pin layout — Outline and pin layout — millimetres, 42.5 mm pin spacing. Every part number on the 80VA-EI78-40.5-KK datasheet shares this footprint.

Series specifications

Core: EI78
Rated power: 80 VA
Primary: 230 V (single winding)
Secondary: 6–24 V per winding · single or dual
Pin spacing: 42.5 mm
Winding code: 40.5
Cover style: KK (cover + strain relief)
Copper weight: 285 g
Total weight: 1,710 g
Pin configuration: 2-8 / 12-16 · 2-8 / 11-13 + 15-17
Certifications: EN 61558
Part numbers: 14 on this datasheet

Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.

Datasheet

Archive copy

Factory datasheet for the withdrawn 80VA-EI78-40.5-KK series, kept here for anyone maintaining a design that already uses one. PDF, opens in a new tab.

80VA-EI78-40.5-KK.pdf

Download datasheet

Part numbers in this series

Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.

Filter this table

14 rows

80VA-EI78-40.5-KK — part numbers

ASL203506	6 V	13,330	6.55 V	2-8 / 12-16
ASL203508	7.5 V	10,660	8.2 V	2-8 / 12-16
ASL203509	9 V	8,890	9.75 V	2-8 / 12-16
ASL203512	12 V	6,670	13.1 V	2-8 / 12-16
ASL203515	15 V	5,330	16.35 V	2-8 / 12-16
ASL203518	18 V	4,440	19.8 V	2-8 / 12-16
ASL203524	24 V	3,330	26.3 V	2-8 / 12-16
ASL203606	2 × 6 V	6,670	6.5 V	2-8 / 11-13 + 15-17
ASL203608	2 × 7.5 V	5,330	8.2 V	2-8 / 11-13 + 15-17
ASL203609	2 × 9 V	4,440	9.7 V	2-8 / 11-13 + 15-17
ASL203612	2 × 12 V	3,330	13.1 V	2-8 / 11-13 + 15-17
ASL203615	2 × 15 V	2,670	16.3 V	2-8 / 11-13 + 15-17
ASL203618	2 × 18 V	2,220	19.75 V	2-8 / 11-13 + 15-17
ASL203624	2 × 24 V	1,660	26.3 V	2-8 / 11-13 + 15-17

Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.

Next step

Still using this series?

The wind still exists as a specification even though the part number has gone. Send it over and we will price the same transformer as a custom build.
