EI84 series

100VA-EI84-43.5-KK

100 VA · EI84 core · KK (cover + strain relief) · 230 V primary · 14 part numbers

DiscontinuedDatasheet (PDF)Request a quote

This series has been withdrawn from the current catalog

The 100VA-EI84-43.5-KK datasheet is no longer part of pcb mount transformers production and these part numbers cannot be ordered. The page and the drawing stay published for anyone maintaining a design that already uses one — open a part number below to see the active parts it can be requoted against.

Send the specification and we will quote the same wind as a custom build.

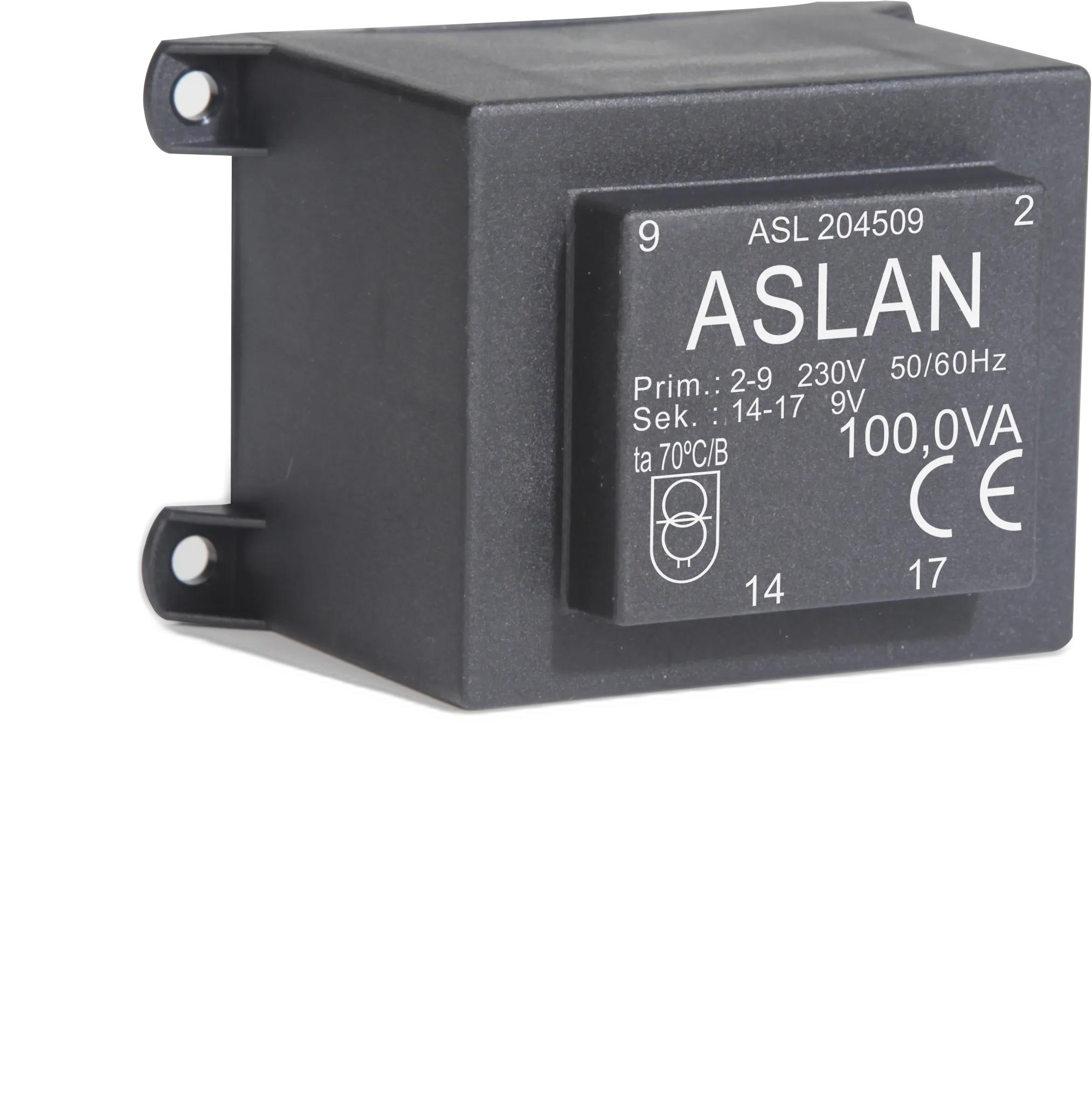

Photograph of an Aslan 100VA-EI84-43.5-KK EI84 transformer — 100VA-EI84-43.5-KK as supplied — KK (cover + strain relief). The winding printed on the label is one of the part numbers listed below.

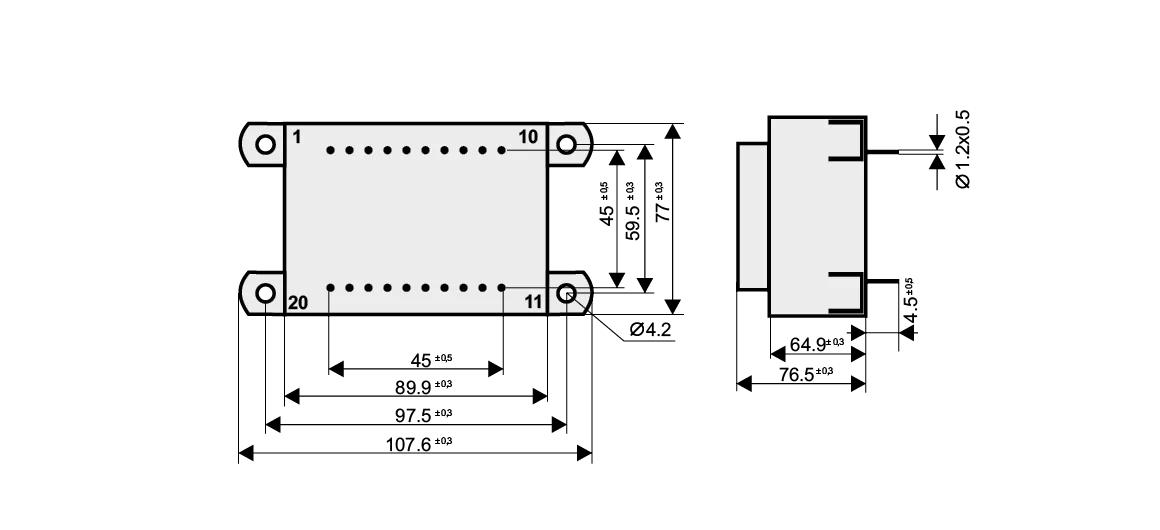

Dimensioned drawing of the 100VA-EI84-43.5-KK transformer: outline, mounting height, and pin layout — Outline and pin layout — millimetres, 45 mm pin spacing. Every part number on the 100VA-EI84-43.5-KK datasheet shares this footprint.

Series specifications

Core: EI84
Rated power: 100 VA
Primary: 230 V (single winding)
Secondary: 6–24 V per winding · single or dual
Pin spacing: 45 mm
Winding code: 43.5
Cover style: KK (cover + strain relief)
Copper weight: 310 g
Total weight: 2,140 g
Pin configuration: 2-9 / 14-17 · 2-9 / 12-14 + 17-19
Certifications: EN 61558
Part numbers: 14 on this datasheet

Insulation and impregnation are specified as air, oven-dried varnish, polyurethane coating, or epoxy potting, selected to the unit's environmental exposure and required creepage and clearance.

Datasheet

Archive copy

Factory datasheet for the withdrawn 100VA-EI84-43.5-KK series, kept here for anyone maintaining a design that already uses one. PDF, opens in a new tab.

100VA-EI84-43.5-KK.pdf

Download datasheet

Part numbers in this series

Core, rating, cover, and footprint are fixed by the datasheet above. These 14 part numbers differ only in the secondary winding.

Filter this table

14 rows

100VA-EI84-43.5-KK — part numbers

ASL204506	6 V	16,670	6.45 V	2-9 / 14-17
ASL204508	7.5 V	13,330	8.15 V	2-9 / 14-17
ASL204509	9 V	11,110	9.8 V	2-9 / 14-17
ASL204512	12 V	8,330	13 V	2-9 / 14-17
ASL204515	15 V	6,670	16.15 V	2-9 / 14-17
ASL204518	18 V	5,560	19.4 V	2-9 / 14-17
ASL204524	24 V	4,170	26.2 V	2-9 / 14-17
ASL204606	2 × 6 V	8,330	6.4 V	2-9 / 12-14 + 17-19
ASL204608	2 × 7.5 V	6,670	8.15 V	2-9 / 12-14 + 17-19
ASL204609	2 × 9 V	5,560	9.8 V	2-9 / 12-14 + 17-19
ASL204612	2 × 12 V	4,170	13 V	2-9 / 12-14 + 17-19
ASL204615	2 × 15 V	3,330	16.1 V	2-9 / 12-14 + 17-19
ASL204618	2 × 18 V	2,780	19.35 V	2-9 / 12-14 + 17-19
ASL204624	2 × 24 V	2,080	26.2 V	2-9 / 12-14 + 17-19

Current is quoted per secondary winding, so a dual-winding part delivers the listed current on each of its two windings rather than splitting it between them. No-load voltage is the open-circuit secondary before the winding is loaded — expect it to sit above the rated figure.
